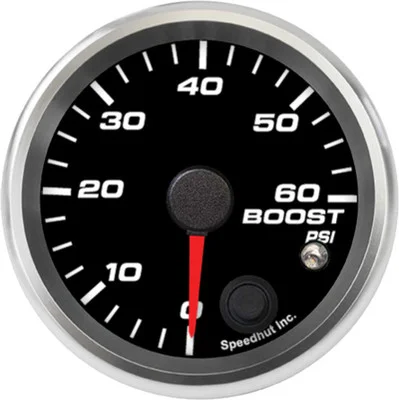

Speedhut 2-5/8″ 0-60 PSI Boost Gauge w/ Warning (R25-B5-REV)

Description

The Speedhut 2-5/8″ 0-60 PSI Boost Gauge w/ Warning (R25-B5-REV) offers precise monitoring of your engine’s intake manifold pressure. This gauge is essential for turbocharged or supercharged vehicles, providing real-time feedback on boost and vacuum levels to help optimize performance and prevent potential engine damage. The integrated warning light adds an extra layer of protection by alerting you if boost pressure exceeds a preset threshold.

KEY FEATURES AND BENEFITS:

• Accurate Readings: Employs a 3-Wire Military Grade Transducer (Performance) for highly accurate and reliable pressure measurements.
• Dual Functionality: Measures both boost (positive pressure) up to 60 PSI and vacuum (negative pressure), providing a comprehensive view of engine performance.
• Over-Boost Protection: Features a user-configurable warning light that illuminates when boost pressure exceeds a set limit, helping to prevent engine damage.
• Optimal Size: The 2-5/8 inch (66mm) diameter offers excellent visibility while fitting comfortably in most gauge pods or mounting locations.
• Complete Installation Kit: Ships with all necessary wiring harnesses and a pressure sensor for a straightforward installation process.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range: 0-60 PSI
• Size: 2 5/8 inch (66mm)
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard (PSI)
• Warning Light: Yes
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 PSI

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8″ gauge in your desired location using a compatible gauge pod or mounting solution. Ensure the 2.67″ (68mm) hole size is appropriate.
2. Connect the Pressure Sensor: Install the included 100 PSI pressure sensor to a suitable boost/vacuum source on your engine’s intake manifold.
3. Wire the Pressure Sensor: Connect the 3-wire cable from the pressure gauge wiring harness to the corresponding terminals on the pressure sensor.
4. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a 12V power source and ground. This harness also powers the LED backlighting.
5. Set the Warning Threshold (if applicable): Follow the manufacturer’s instructions to set your desired maximum boost pressure. The warning light will activate if this level is exceeded.
6. Monitor Readings: Once installed and powered, the gauge will display real-time boost and vacuum readings. Observe these readings to understand your engine’s performance.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-60 PSI BOOST GAUGE W/ WARNING (R25-B5-REV):

• Enhanced Engine Awareness: Provides crucial information about your engine’s performance under various driving conditions.
• Proactive Engine Protection: The integrated warning light helps prevent over-boosting, which can lead to costly engine damage.
• Accurate Performance Monitoring: The military-grade transducer ensures precise and reliable readings, essential for tuning and diagnostics.
• Easy Installation: Comes with all necessary hardware, simplifying the installation process.
• Clear and Visible Display: The 2-5/8″ size offers a good balance between information display and space efficiency.

FEATURES:

• Utilizes a high-accuracy 3-wire sender for precise pressure measurement.
• Displays both positive (boost) and negative (vacuum) pressure readings.
• Includes a visual alert system for exceeding user-defined boost levels.
• Designed with a standard 2-5/8″ diameter for versatile mounting options.
• Operates on standard PSI units for easy understanding.
• Features LED backlighting for clear visibility in all lighting conditions.
• Comes with a dedicated wiring harness for the pressure sensor connection.
• Includes a separate harness for powering the gauge and its illumination.
• Ships with a robust 100 PSI capacity pressure sensing unit.
