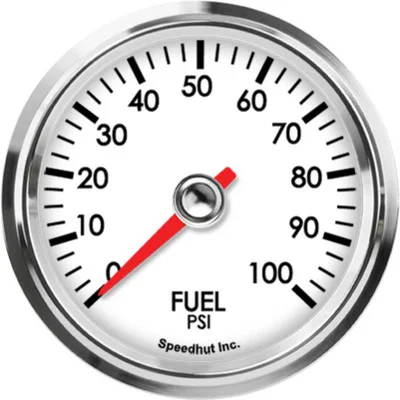

Speedhut 2-5/8″ 0-100 PSI Fuel Pressure Gauge (L25-FP4-LEG)

Description

The Speedhut 2-5/8″ 0-100 PSI Fuel Pressure Gauge (L25-FP4-LEG) is a vital instrument for monitoring your vehicle’s fuel system pressure, ensuring optimal engine performance and reliability. This gauge provides accurate readings thanks to its high-quality components and thoughtful design.

KEY FEATURES AND BENEFITS:

• Measurement Range: 0-100 PSI, suitable for a wide variety of fuel injection systems.
• Transducer Type: 3-Wire Military Grade Transducer (Performance) for precise and dependable readings.
• Complete Installation Kit: Includes Pressure Gauge Wiring Harness (3-Wire Cable), 3 ft Power & Lighting Harness, and 100 PSI Pressure Sensor.
• Integrated LED Illumination: Enhances visibility of gauge readings in various lighting conditions.
• Robust Construction: Built with durable materials to ensure long-term accuracy and reliability.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 PSI
• Size: 2-5/8 inch
• Hole Size: 2.67 inches (68 mm)
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness
• Pressure Sensor – 100 PSI

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8″ gauge in your desired location using the spin-lock ring. Ensure the 2.67″ (68 mm) mounting hole is appropriately sized.
2. Install the Pressure Sensor: Mount the included 100 PSI Pressure Sensor in a suitable location on your vehicle’s fuel system, ensuring a proper seal.
3. Connect the Wiring Harness: Connect the 3-Wire Cable from the pressure sensor to the corresponding terminals on the back of the gauge using the provided Pressure Gauge Wiring Harness.
4. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source in your vehicle. This harness also powers the LED backlighting for enhanced visibility.
5. Verify Readings: Once all connections are secure, start your vehicle and observe the fuel pressure readings on the gauge to ensure proper installation and functionality.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-100 PSI FUEL PRESSURE GAUGE (L25-FP4-LEG):

• Accurate monitoring of fuel delivery to detect issues like a failing fuel pump or clogged fuel filter early.
• Helps maintain optimal fuel efficiency and engine performance by providing real-time fuel pressure data.
• LED backlighting ensures excellent visibility in all lighting conditions.
• High-quality transducer ensures trustworthy, consistent pressure readings.
• Complete kit simplifies installation with all required components included.

FEATURES:

• Precise Measurement: Provides accurate fuel pressure readings up to 100 PSI.
• High-Performance Transducer: 3-Wire Military Grade for reliable performance.
• Universal Sizing: 2-5/8 inch diameter fits various mounting locations.
• Secure Installation: Spin-lock ring ensures a tight, simple fit.
• Enhanced Visibility: Integrated LED backlighting for day and night use.
• Complete Kit: Comes with all necessary wiring harnesses and pressure sensor.
