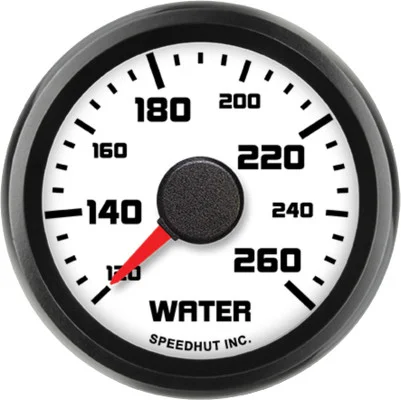

Speedhut 2-1/16″ Street XL 120-260F Water Temp Gauge (L2-WT1-SXL)

Description

The Speedhut 2-1/16″ Street XL 120-260F Water Temp Gauge (L2-WT1-SXL) is a reliable instrument designed to provide accurate real-time monitoring of your vehicle’s engine coolant temperature. This analog gauge, part of the Street XL series, offers a clear and easy-to-read display within the standard 2 1/16 inch (52mm) gauge size. Its measuring range of 120 to 260 degrees Fahrenheit allows you to keep a close watch on your engine’s thermal performance, helping to prevent overheating and potential engine damage. The gauge comes complete with a performance-oriented 2-wire temperature sender and the necessary wiring harnesses for a straightforward installation process.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of your engine’s coolant temperature within a 120-260°F range, crucial for maintaining optimal engine health.
• Complete Kit: Includes a 2-wire performance temperature sender and all essential wiring harnesses (temperature gauge wiring harness and power & lighting harness) for installation.
• Standard Size: The 2 1/16 inch (52mm) size ensures compatibility with many standard gauge pods and mounting solutions.
• Clear Display: The Street XL design offers an easy-to-read analog display, allowing for quick and effortless temperature checks.
• LED Illumination: Features LED backlighting via a dedicated power and lighting harness for enhanced visibility, especially in low-light conditions.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 120-260 degrees Fahrenheit
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.10 inches (54mm)
• Standard or Metric: Standard (Fahrenheit)
• Warning Light: No
• Included: Speedhut Temperature Sensor, Temperature Gauge Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Choose a suitable location in your vehicle and create a 2.10-inch (54mm) diameter hole for mounting the gauge. Secure the gauge using the provided mounting hardware.
2. Install the Temperature Sender: Locate an appropriate port on your engine’s coolant system and install the included Speedhut temperature sensor. Ensure a proper seal to prevent leaks.
3. Connect the Temperature Sender Wiring: Connect the 2-wire cable from the temperature gauge wiring harness to the terminals on the installed temperature sender.
4. Connect the Power and Lighting Harness: Connect the 3 ft power & lighting harness to a suitable 12-volt power source in your vehicle. This harness will power the gauge’s internal electronics and the LED illumination. Ensure proper grounding.
5. Connect to the Gauge: Connect both the temperature gauge wiring harness and the power & lighting harness to the corresponding connections on the back of the Speedhut water temperature gauge.
6. Verify Functionality: Once all connections are secure, start your vehicle and observe the gauge to ensure it is receiving power and displaying the coolant temperature accurately as the engine warms up.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ STREET XL 120-260F WATER TEMP GAUGE (L2-WT1-SXL):

• Provides clear and immediate insight into engine operating temperatures to help prevent overheating.
• Helps detect potential engine problems before they escalate into expensive repairs.
• Improves engine performance and longevity by ensuring optimal operating temperatures.
• Includes a high-quality sensor and all necessary components for easy installation.
• Clear analog display and LED illumination make temperature monitoring effortless, day or night.

FEATURES:

• Analog display for quick temperature assessment.
• Specifically designed for monitoring coolant temperature.
• Performance-oriented 2-wire temperature sensing technology.
• Compact 2 1/16″ size for versatile mounting options.
• Requires a 2.10″ (54mm) mounting hole.
• Operates on standard 12-volt electrical systems.
• Illuminated dial via included power and lighting harness for nighttime visibility.
• Comes with a dedicated Speedhut temperature sensor.
• Includes a 2-wire cable for connecting the temperature sensor to the gauge.
• Features a separate 3 ft power and lighting harness for easy electrical connections.
