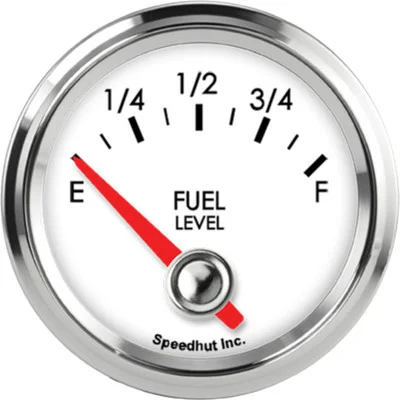

Speedhut 2-1/16″ Programmable Fuel Level Gauge 90° Sweep (L2-FL2-LEG)

Description

The Speedhut 2-1/16″ Programmable Fuel Level Gauge 90° Sweep (L2-FL2-LEG) is a reliable instrument designed to provide accurate readings of your vehicle’s fuel level. Featuring a traditional aesthetic with modern programmability, this gauge seamlessly integrates into a variety of dashboards. Its 90-degree sweep allows for quick and easy visual interpretation of the fuel level, ranging from Empty (E) to Full (F). This gauge is engineered for broad compatibility, working with most fuel level sending units that operate at 300 ohms or less. Please note that the fuel level sensor itself is not included with the purchase of this gauge.

KEY FEATURES AND BENEFITS:

• Accurate Fuel Monitoring: Provides precise readings of your vehicle’s fuel level, helping you avoid unexpected empty tanks.
• Wide Compatibility: Programmable to function with the majority of fuel level sensors available (up to 300 ohms).
• Classic Styling: The design offers a timeless look that complements various vehicle interiors.
• Easy to Read: The 90-degree sweep ensures quick and clear visual assessment of the fuel level.
• Standard Size: With a 2-1/16 inch diameter, it fits common gauge mounting locations.
• Simple Installation: Designed for straightforward mounting in a 2.05-inch opening.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 1/16 inch
• Sweep: 90 Degree
• Range: E-F
• Hole Size: 2.05 inch (52mm)
• Warning Light: No
• Included: Gauge unit

HOW TO USE:

1. Mount the Gauge: Secure the 2-1/16″ Classic Fuel Level Gauge into a 2.05-inch diameter opening in your vehicle’s dashboard using appropriate mounting hardware (not included, unless specified by the seller).
2. Wire the Gauge: Connect the gauge’s wiring harness to a 12V power source, ground, and the signal wire from your fuel level sending unit. Refer to the wiring diagram provided with the gauge for correct connections.
3. Program the Gauge (if necessary): If your fuel level sending unit has a resistance range other than the default setting of the gauge, you will need to program it. This typically involves following a specific sequence of button presses or connections as outlined in the gauge’s instruction manual to calibrate it to your sensor’s empty and full resistance values.
4. Verify Operation: Once wired and programmed (if needed), turn on your vehicle’s ignition to check if the gauge is displaying the correct fuel level.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ PROGRAMMABLE FUEL LEVEL GAUGE 90° SWEEP (L2-FL2-LEG):

• Fuel Monitoring Accuracy: Reduces the risk of running out of fuel by providing precise real-time level readings.
• Flexible Integration: Compatible with a broad range of fuel level sensors for use in various vehicle types.
• Timeless Appearance: Matches classic and custom dashboard aesthetics.
• Instant Visibility: The 90° sweep improves readability and allows for quick checks.
• User-Friendly Setup: Straightforward wiring and programming process supports easy installation.

FEATURES:

• Supports most fuel level sending units with resistance up to 300 ohms.
• Classic gauge face design suits various vehicle interiors.
• 90-degree pointer movement for clear fuel level display.
• Fits standard 2-1/16 inch gauge openings for easy integration.
• Basic wiring setup simplifies the installation process.
• Displays fuel level from Empty to Full in a familiar analog format.
