Description

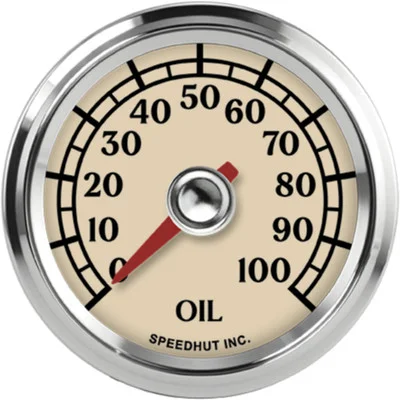

The Speedhut 2-1/16″ Antique Series 100PSI Oil Pressure Gauge (L2-OP3-ATQ) offers precise monitoring of your engine’s oil pressure, a critical factor in maintaining engine health and longevity. Designed with a classic aesthetic, this gauge seamlessly integrates into vintage or traditionally styled vehicle interiors. It provides reliable readings from 0 to 100 PSI, allowing you to keep a close watch on your engine’s lubrication system. This kit includes a high-performance 3-wire military-grade pressure transducer, ensuring accurate and stable measurements under various operating conditions.
KEY FEATURES AND BENEFITS:
- Accurate Monitoring: Provides precise oil pressure readings from 0 to 100 PSI, crucial for engine maintenance.
- Reliable Sensor: Includes a 3-wire military-grade pressure transducer, known for its accuracy and dependability.
- Complete Kit: Ships with the pressure sensor and all necessary wiring harnesses for straightforward installation.
- Classic Styling: The Antique Series design offers a timeless look that complements vintage vehicle interiors.
- Standard Size: The 2-1/16″ (52mm) size fits common gauge pods and mounting solutions.
SPECIFICATIONS:
- Gauge Type: Pressure Gauge
- Gauge Subtype: Oil Pressure Gauge
- Range: 0-100 PSI
- Size: 2 1/16 inch (52mm)
- Hole Size: 2.05 inch (52mm)
- Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
- Included: Pressure Sensor (100 psi), 3 ft Power & Lighting Harness, Pressure Gauge Wiring Harness (3-Wire Cable)
HOW TO USE:
- Mount the Gauge: Install the 2-1/16″ gauge into a suitable 2.05″ (52mm) mounting location in your vehicle’s dashboard or gauge pod.
- Install the Pressure Sensor: Locate the appropriate port on your engine for the oil pressure sender and install the included 100 PSI 3-wire military-grade transducer. Ensure it is securely tightened.
- Connect the Wiring Harness (Sensor): Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge. Refer to the wiring diagram (if provided with the product) for correct connections.
- Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the gauge’s power and ground terminals. Typically, you will connect the power wire to a switched 12V source in your vehicle and the ground wire to a suitable ground point. If the gauge has backlighting, connect the lighting wire to your vehicle’s lighting circuit.
- Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
- Test the Gauge: Start your vehicle and observe the oil pressure reading on the gauge. Ensure it provides a reasonable reading based on your engine’s operating conditions.
BENEFITS OF USING THE SPEEDHUT 2-1/16″ ANTIQUE SERIES 100PSI OIL PRESSURE GAUGE (L2-OP3-ATQ):
- Allows proactive monitoring of oil pressure to prevent engine damage.
- Provides early warning for potential lubrication issues, helping to avoid costly repairs.
- Ensures accurate readings with a high-quality military-grade pressure transducer.
- Classic design adds vintage charm to the vehicle interior.
- Complete kit simplifies installation, making it suitable for both enthusiasts and professionals.
FEATURES:
- Displays oil pressure readings from 0 to 100 PSI.
- Utilizes a robust 3-wire pressure sensor for consistent accuracy.
- Designed with a vintage-inspired Antique Series aesthetic.
- Compact 2-1/16″ (52mm) size for versatile mounting options.
- Comes complete with a 100 PSI pressure sensor.
- Includes a 3 ft power and lighting wiring harness.
- Supplied with a dedicated 3-wire cable for the pressure sensor connection.
