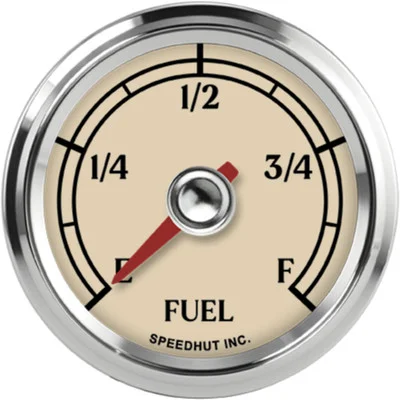

Speedhut 2-1/16″ Antique Programmable Fuel Level Gauge (L2-FL1-ATQ)

Description

The Speedhut 2-1/16″ Antique Programmable Fuel Level Gauge (L2-FL1-ATQ) combines vintage aesthetics with modern functionality, making it an ideal choice for classic car restorations and custom builds. This gauge provides accurate fuel level readings and is programmable to work with a wide range of fuel level sending units operating at 300 ohms or less. Featuring an antique-style white face and classic display, it fits seamlessly into vintage vehicle interiors while offering the reliability of modern technology. Installation is straightforward with the included wiring harnesses and programming button, allowing for flexible application across various custom setups.

KEY FEATURES AND BENEFITS:

• Classic Aesthetic Appeal: Antique-style white face design complements vintage vehicle interiors.
• Programmable Compatibility: Works with sending units that operate at 300 ohms or less, allowing flexible integration.
• Compact and Universal Fit: Standard 2-1/16 inch (52mm) size fits most gauge pods and dashboards.
• Complete Installation Package: Includes power/lighting harness and 2-wire sensor harness for easy installation.
• Accurate Readings: Programmable calibration ensures precise fuel level monitoring for various sender types.
• Straightforward Setup: Programming button included for simple configuration without the need for specialized tools.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 1/16 inch (52mm)
• Range: Empty (E) – Full (F)
• Standard or Metric: Standard
• Hole Size: 2.05 inch (52mm)
• Warning Light: No
• Included: 3 ft Power & Lighting Harness, 2-Wire Cable Wiring Harness, Gauge Programming Button

HOW TO USE:

1. Preparation: Disconnect the vehicle’s negative battery terminal to ensure safety during installation.
2. Mounting: Install the gauge in a 2-1/16 inch (52mm) hole in the dashboard using the appropriate mounting hardware.
3. Wiring: Connect the 3 ft Power & Lighting Harness to a 12V power source, ground, and optional lighting circuit. Attach the 2-wire harness to the fuel sender and ground, following the product’s wiring diagram.
4. Programming:
   • Press and hold the included programming button.
   • Turn the ignition to the accessory or on position while holding the button to enter programming mode.
   • Follow on-screen instructions or manual prompts to configure the gauge for your fuel sender’s resistance range.
   • Perform manual calibration by simulating empty and full tank readings if necessary.
   • Save and exit the programming mode upon completion.
5. Testing: Turn on the ignition and verify the gauge responds accurately to changes in fuel level.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ ANTIQUE PROGRAMMABLE FUEL LEVEL GAUGE (L2-FL1-ATQ):

• Prevents unexpected fuel shortages by providing accurate real-time fuel level monitoring.
• Blends classic visual styling with modern gauge technology, enhancing vintage dashboard aesthetics.
• Programmable design ensures compatibility with a broad range of sending units, accommodating various vehicle types.
• Easy installation and calibration process reduces time and complexity for custom builds and restorations.

FEATURES:

• Vintage Appearance: Styled with a classic white face to suit antique and retro vehicle themes.
• Broad Sensor Compatibility: Accepts input from sending units up to 300 ohms, supporting wide vehicle applications.
• Space-Efficient Design: 2-1/16 inch diameter for convenient installation in tight dashboard spaces.
• Clear Markings: Displays fuel level from “E” (Empty) to “F” (Full) with high legibility.
• Simple Programming: Includes push-button for intuitive configuration and calibration.
• Essential Wiring Included: Supplied with power, lighting, and sensor wiring harnesses for hassle-free setup.
