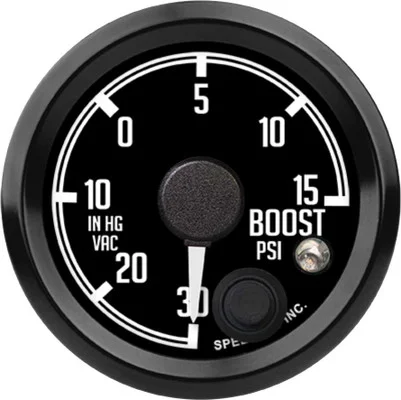

Speedhut 2-1/16″ 30inhg-0-15 Boost/Vac Gauge w/Warning (R2-BV2-DATZ)

Description

The Speedhut 2-1/16″ 30inhg-0-15 Boost/Vac Gauge w/Warning (R2-BV2-DATZ) is an essential instrument for closely observing the pressure levels within your vehicle’s engine. Designed for both turbocharged and naturally aspirated systems, this gauge provides immediate and reliable feedback on boost and vacuum conditions, aiding in performance optimization and issue identification. Its specific Datsun styling makes it a perfect match for vehicles with that classic aesthetic. The integrated warning light offers an added layer of security, allowing users to define safe operating parameters and receive instant alerts if those limits are exceeded.

KEY FEATURES AND BENEFITS:

• Provides accurate, real-time readings: of engine boost (0-15 psi) and vacuum (30 inHg).
• Utilizes a high-performance 3-Wire Military Grade Transducer: for dependable measurements.
• Features a user-settable warning light: to indicate when pressure levels fall outside the desired range.
• Designed with a 2 1/16 inch (52mm) diameter: for straightforward mounting in standard gauge pods.
• Boasts a distinct Datsun-inspired design: to complement the interior of Datsun vehicles.
• Facilitates the diagnosis of engine-related problems: and the optimization of performance for forced induction systems.
• Offers a proactive approach to engine maintenance: by alerting users to potentially damaging pressure conditions.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range: 30 inHg to 0 to 15 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Included:
  • 3 ft Power & Lighting Harness
  • Boost/Vac Hose Kit
  • 30 psi Pressure Sensor
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2 1/16″ (52mm) diameter opening in your vehicle’s dashboard or gauge pod. Secure the gauge using its mounting hardware.
2. Install the Pressure Sensor: Identify a suitable location on your engine’s intake manifold or a relevant boost/vacuum source. Install the included 30 psi pressure sensor at this location.
3. Connect the Hose: Attach one end of the provided Boost/Vac Hose to the pressure sensor and the other end to the back of the boost/vacuum gauge. Ensure a secure and leak-free connection.
4. Wire the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle, ensuring proper grounding. This harness will power the gauge’s operation and illumination.
5. Connect the Pressure Sensor Wiring: Use the included Pressure Gauge Wiring Harness (3-Wire Cable) to connect the pressure sensor to the corresponding terminals on the back of the boost/vacuum gauge.
6. Set the Warning Light (Optional): Follow the gauge’s instructions to set the desired boost or vacuum level at which the warning light should activate.
7. Monitor Readings: Once everything is connected, start your vehicle’s engine. The gauge will now display real-time boost and vacuum readings. Observe these readings during various driving conditions to understand your engine’s performance.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 30INHG-0-15 BOOST/VAC GAUGE W/WARNING (R2-BV2-DATZ):

• Enhanced Engine Awareness: Provides continuous and accurate information about critical engine pressure levels, allowing for a better understanding of its operation.
• Proactive Problem Solving: Enables early detection of potential issues related to boost or vacuum leaks, preventing more significant engine damage.
• Optimized Performance Tuning: Offers valuable data for fine-tuning turbocharged or supercharged systems to achieve peak efficiency and power.
• Increased Driving Safety: The settable warning light provides an immediate visual cue if pressure levels deviate from safe parameters, allowing for timely adjustments.
• Aesthetic Integration: The specific Datsun design ensures the gauge blends seamlessly with the interior styling of Datsun vehicles, maintaining a cohesive look.
• Reliable and Accurate Data: The inclusion of a military-grade transducer guarantees precise and dependable readings, crucial for informed decision-making regarding engine performance.

FEATURES:

• Dedicated Datsun-inspired visual design.
• Precise readings delivered by a high-quality 3-wire pressure transducer.
• Configurable alert system via the integrated warning light.
• Standard 2 1/16″ (52mm) size for versatile mounting options.
• Clear and easily readable display of boost and vacuum levels.
• Robust construction designed for automotive environments.
• Complete installation kit included for a straightforward setup.
