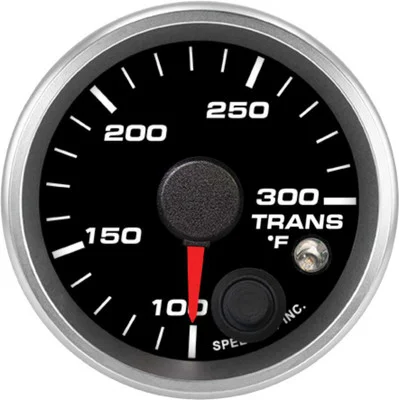

Speedhut 2-1/16″ 100-300F Trans Temp Gauge w/ Warning (R2-TT1-REV)

Description

The Speedhut 2-1/16″ 100-300F Trans Temp Gauge w/ Warning (R2-TT1-REV) provides accurate and reliable monitoring of your vehicle’s transmission fluid temperature. This gauge is crucial for maintaining optimal transmission health and preventing costly damage caused by overheating. Its clear display and integrated warning light ensure you are always aware of your transmission’s operating conditions.

KEY FEATURES AND BENEFITS:

• Clearly displays transmission temperature: Within a range of 100 to 300 degrees Fahrenheit, allowing for precise monitoring.
• Equipped with a settable warning light: Alerts the driver when transmission temperatures exceed a predefined limit, providing crucial early warnings.
• Includes a 2-Wire Performance Temperature Sender: Ensures accurate and responsive temperature readings.
• Compact Size: The 2-1/16 inch (52mm) size is convenient for mounting in various gauge pods and locations.
• Easy installation: Facilitated by the included mounting hardware and wiring harnesses.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Transmission Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 F
• Size: 2 1/16 inch
• Hole Size: 2.10 inches (54mm)
• Standard or Metric: Standard
• Warning Light: Yes
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Choose a suitable location and drill a 2.10-inch (54mm) hole. Insert and secure the gauge using the provided mounting hardware.
2. Install the Temperature Sender: Find an appropriate port on the transmission pan or fluid line. Install the 2-Wire Performance Temperature Sender and ensure a sealed connection.
3. Connect the Wiring Harnesses:
   • Attach one end of the Temperature Gauge Wiring Harness to the temperature sender terminals.
   • Connect the other end of the harness to the back of the gauge.
   • Attach the 3 ft Power & Lighting Harness to the gauge’s power and ground terminals, and to a suitable power source and ground in the vehicle.
4. Set the Warning Light (if applicable): Follow manufacturer instructions to set a high-temperature threshold for the warning light.
5. Verify Operation: Start the vehicle and allow the transmission to warm up. Check the gauge display and confirm that the warning light activates at the set threshold.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 100-300F TRANS TEMP GAUGE W/ WARNING (R2-TT1-REV):

• Prevents Overheating: Real-time monitoring helps avoid overheating and costly transmission damage.
• Extends Transmission Life: Helps maintain optimal fluid temperature for better performance and longevity.
• Early Problem Detection: Temperature anomalies can signal issues early, allowing timely maintenance.
• Performance Monitoring: Ideal for performance vehicles or towing situations where transmission strain is higher.
• Increased Driver Awareness: Easy-to-read gauge and warning light promote safer and more confident driving.

FEATURES:

• Clear analog display showing temperatures from 100 to 300 degrees Fahrenheit.
• Integrated warning light activates at user-defined temperature thresholds.
• Uses precise 2-wire temperature sensing technology for accuracy.
• Compact 2 1/16 inch (52mm) size allows flexible mounting in dashboards or gauge pods.
• Designed for easy installation with included harnesses and mounting gear.
• Displays temperature in standard Fahrenheit units.
• Fits into a 2.10-inch (54mm) diameter mounting hole.
• Includes 3 ft power and lighting harness for clean electrical integration.
• Ships with a dedicated Speedhut temperature sensor for reliable measurements.
• Supplied with a 2-wire harness to connect the sensor to the gauge.
