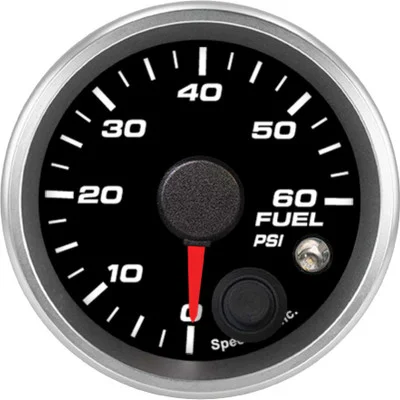

Speedhut 2-1/16″ 0-60 PSI Fuel Pressure Gauge w/ Warning (R2-FP3-REV)

Description

The Speedhut 2-1/16″ 0-60 PSI Fuel Pressure Gauge w/ Warning (R2-FP3-REV) is a vital instrument for monitoring your vehicle’s fuel system. This gauge provides accurate and reliable readings of fuel pressure, ranging from 0 to 60 pounds per square inch (PSI). Maintaining optimal fuel pressure is crucial for engine performance and longevity, ensuring the correct amount of fuel is delivered to the engine at all times. This gauge is designed with precision and durability in mind, featuring a high-quality 3-wire military-grade transducer for enhanced performance and accuracy.

KEY FEATURES AND BENEFITS:

• Precise Fuel Pressure Monitoring: Accurately displays fuel pressure from 0 to 60 PSI, providing critical information for engine management.
• High-Performance Transducer: Utilizes a 3-wire military-grade transducer, ensuring accurate and reliable pressure readings for optimal engine performance.
• Integrated Warning System: Features a settable warning light that alerts the driver to low or high fuel pressure conditions, helping to prevent potential engine damage.
• Standard Sizing: The 2 1/16 inch (52mm) diameter ensures compatibility with a wide range of aftermarket gauge pods and dashboard setups.
• Complete Installation Kit: Ships with a pressure gauge wiring harness, a power and lighting harness, and a 100 PSI pressure sensor, providing all the necessary components for installation.
• Clear Visual Display: Features a black face with white numbers and an orange pointer for easy readability, even in varying lighting conditions.
• Illuminated Display: Equipped with high-visibility LEDs for enhanced nighttime viewing.
• Weather-Resistant Construction: Designed to withstand various environmental conditions, ensuring long-lasting performance.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Range: 0-60 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Metric (gauge size), Standard (pressure reading)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Pressure Sensor Range: 100 psi
• Warning Light: Yes
• Ships With: Pressure Gauge Wiring Harness (3-Wire Cable), 3 ft Power & Lighting Harness, Pressure Sensor (100 psi)
• Compatibility: Universal for vehicles requiring 0-60 PSI fuel pressure monitoring with a 1/8 in. NPT sensor port.

HOW TO USE:

1. Mount the Gauge: Choose a suitable location on your dashboard or in a gauge pod and securely mount the 2 1/16 inch gauge. Ensure there is enough clearance for the wiring on the back of the gauge.
2. Install the Pressure Sensor: Locate the appropriate port on your vehicle’s fuel system (typically on the fuel rail or fuel pressure regulator). Install the included 100 PSI pressure sensor into this port, ensuring a tight and leak-free connection. The sensor usually has a 1/8 inch NPT thread.
3. Connect the Wiring Harness to the Sensor: Attach the 3-wire cable from the pressure gauge wiring harness to the corresponding terminals on the 3-wire military-grade transducer (pressure sensor). Refer to the wiring diagram provided with the gauge for correct connections.
4. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the gauge. Typically, there will be connections for power (12V), ground, and illumination (often connected to a switched power source or the vehicle’s lighting circuit).
5. Connect Power and Ground: Connect the power wire (usually red) from the power and lighting harness to a 12V power source that is switched with the ignition. Connect the ground wire (usually black) to a reliable grounding point on the vehicle’s chassis.
6. Connect the Warning Light (Optional): If you wish to use the warning light feature, follow the instructions in the gauge’s manual to set the desired pressure threshold. The warning light wire will need to be connected accordingly.
7. Test the Gauge: Once all connections are made, start your vehicle and observe the fuel pressure reading on the gauge. Ensure the reading is within the expected range for your vehicle. Check for any leaks at the pressure sensor connection.
8. Set the Warning Light Threshold (If Applicable): If your gauge has a programmable warning light, follow the manufacturer’s instructions to set the desired low or high-pressure warning points.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-60 PSI FUEL PRESSURE GAUGE W/ WARNING (R2-FP3-REV):

• Accurately monitors fuel pressure in real-time to detect fuel system issues early.
• Helps identify problems such as a failing fuel pump, clogged filter, or faulty regulator.
• High-precision 3-wire military-grade transducer ensures dependable readings.
• Settable warning light alerts the user to unsafe fuel pressure levels, aiding in engine protection.
• Standard 2 1/16 inch size fits most dashboard setups or aftermarket pods.
• Includes a complete installation kit with all required components.
• Backlit, illuminated display enhances visibility in all lighting conditions for safer monitoring.

FEATURES:

• Provides live readings of fuel pressure in PSI from 0 to 60.
• Employs a robust 3-wire transducer for precise measurements.
• Includes a user-configurable visual alert for pressure anomalies.
• Designed with a standard 52mm (2 1/16″) diameter for versatile mounting.
• Comes bundled with all essential electrical connections.
• Offers a straightforward black gauge face with contrasting white numerals and an orange pointer for easy interpretation.
• Features bright LEDs for enhanced visibility during nighttime operation.
• Engineered to resist common environmental factors encountered in vehicles.
