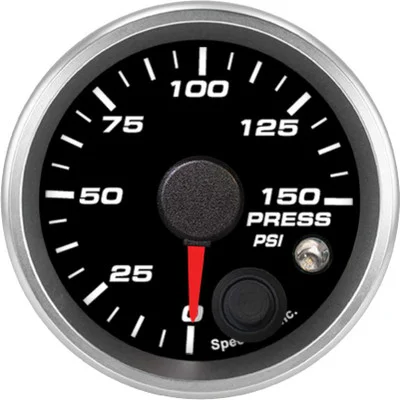

Speedhut 2-1/16″ 0-150 PSI Pressure Gauge w/ Warning (R2-P1-REV)

Description

The Speedhut 2-1/16″ 0-150 PSI Pressure Gauge w/ Warning (R2-P1-REV) provides accurate and reliable monitoring of pressure levels for various applications in your vehicle. Its clear display and integrated warning light allow you to stay informed of critical pressure conditions, helping to prevent potential issues. This gauge combines quality construction with user-friendly features, making it a valuable addition to any instrument panel.

KEY FEATURES AND BENEFITS:

• Versatile Pressure Range: Measures 0-150 PSI, suitable for oil, fuel, or air pressure monitoring.
• Integrated Warning System: Settable warning light alerts for low or high pressure conditions.
• High-Precision Sensor: Includes a 3-Wire Military Grade Transducer for dependable measurements.
• Standard Gauge Size: 2-1/16″ (52mm) diameter for easy integration into most panels.
• Streamlined Setup: Comes with power, lighting, and sensor wiring harnesses for simplified installation.
• Reliable Construction: Built to withstand demanding automotive conditions for long-term performance.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Range: 0-150 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Warning Light: Yes
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Sensor – 300psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2 1/16″ (52mm) diameter hole and secure the gauge using the spin-lock ring.
2. Connect Power and Lighting:
   • Red wire to +12V accessory power source (switched power)
   • Orange wire to +12V dash lighting source (optional illumination)
   • Black wire to a reliable ground
3. Connect the Pressure Sensor: Install the 300psi sensor to the relevant pressure system (e.g., oil port, fuel line).
4. Connect the Sensor Wiring: Use the included 3-wire cable to connect the sensor to the back of the gauge, matching power, ground, and signal.
5. Set the Warning Light (Optional):
   • Turn on vehicle power—pointer will sweep.
   • Press and hold the button during power-up to set the low-pressure warning; release at desired threshold.
   • Press again to set the high-pressure threshold; release at the desired point.
   • Settings are automatically saved.
6. Verify Operation: Start the vehicle and ensure accurate readings and correct warning light behavior.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-150 PSI PRESSURE GAUGE W/ WARNING (R2-P1-REV):

• Continuous Monitoring: Allows real-time assessment of pressure levels to identify abnormalities quickly.
• Enhanced Safety: Warning light alerts help prevent system failures and costly damage.
• Dependable Readings: The military-grade transducer ensures the gauge displays accurate, consistent values.
• Seamless Installation: The compact gauge and included harnesses allow easy integration into new or existing setups.
• Multi-System Compatibility: Supports monitoring of oil, fuel, or air pressure as needed.

FEATURES:

• Clear Analog Display: Provides quick and easy pressure assessment.
• Accurate 3-Wire Sensor: Military-grade transducer ensures precision and reliability.
• Compact Size: Fits standard 2-1/16″ (52mm) gauge pods and panels.
• Complete Wiring Kit: Includes all necessary harnesses for power, lighting, and sensor connection.
• Robust Build Quality: Engineered for longevity in tough automotive environments.
• Custom Warning Points: Lets users set preferred high and low pressure thresholds.
