Description

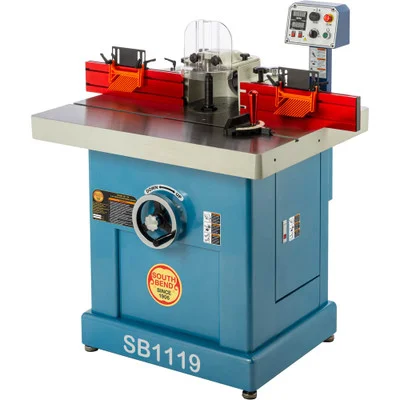

South Bend 3 HP Single-Phase Variable-Speed Spindle Shaper (SB1119) is engineered for precision shaping in advanced woodworking projects. With its digital readout (DRO) for spindle RPM and height positioning, this spindle shaper ensures precise adjustments for every cut.
Equipped with an anodized aluminum fence and rack-and-pinion adjustment, this spindle shaper allows for smooth and accurate fence positioning with micro-adjustment knobs. The dual 4″ dust ports and quick-release belt tensioner further enhance its usability, keeping your workspace clean and allowing for fast setup adjustments.
- Specifications and Dimensions
- Motor: 3 HP, 230V, 3-phase with inverter (single-phase), 8A
- Required power supply: 230V, single-phase, minimum 20A circuit
- Maximum cutter height: 5″
- Maximum cutter diameter: 7″
- Spindle diameters: 3/4″, 1-1/4″
- Spindle lengths: 3-7/8″ and 5-7/8″
- Spindle capacities under nut: 3-1/2″ and 5-1/8″
- Spindle speed: Variable, 5000–10,000 RPM
- Spindle travel: 4″
- Spindle openings: 2-1/2″, 4-1/8″, 5-3/4″, 7″
- Table counterbore: 8-1/4″ diameter, 3/16″ depth
- Table size: 31-1/2″ x 39-1/4″
- Floor-to-table height: 36-5/8″
- Footprint: 25-1/2″ x 31″
- Dimensions: 39-1/2″ W x 34″ D x 51-1/2″ H
- Approx. shipping weight: 780–800 lbs.
- Key Features and Benefits
- DRO for spindle RPM and height positioning for precise control
- Variable speed range of 5000–10,000 RPM for diverse shaping tasks
- Anodized aluminum fence with featherboard attachments for stability
- Rack-and-pinion fence adjustment with 4″ travel and micro-adjustment knobs
- Dual 4″ dust ports for efficient dust collection and cleaner workspace
- Quick-release belt tensioner for easy maintenance and adjustments
