Description

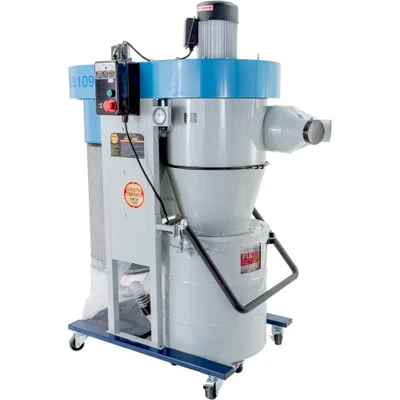

South Bend 2 HP Cyclone Dust Collector (SB1092) is engineered for powerful and efficient dust extraction, ideal for high-demand workshops. With a 2-stage dust separation system, this dust collector captures large debris in a 28-gallon drum, while the remaining fine particles pass through a 1-micron pleated filter.
This dust collector offers ease of use with a remote-controlled magnetic switch and a compact, low-profile design. Its powerful 2HP motor delivers 1132 CFM airflow, making it perfect for connecting up to three machines. Enjoy hassle-free dust disposal with the quick-release drum lift handle and vacuum equalizer.
- Specifications and Dimensions
- Motor: 2 HP, 220V, single-phase, 9A
- Main Inlet Size: 8″ with two 4″ adapter inlets
- Airflow Capacity: 1132 CFM at 1.1″ SP
- Maximum Static Pressure: 11.5″ at 0 CFM
- Filtration Rating: 1-micron
- Filter Surface Area: 29 sq. ft.
- Impeller: 14-1/2″ radial fin
- Collection Drum Size: 28 gallons
- Sound Rating: 77–79 dB
- Switch: Remote-controlled magnetic with thermal overload protection
- Overall Dimensions: 51″ W x 31″ D x 64″ H
- Key Features and Benefits
- Automatic paddle brush for self-cleaning 1-micron filter
- 8″ main inlet with an adapter to connect up to three 4″ dust lines
- Quick-release lift handle for easy drum removal and dust disposal
- Sound-dampening muffler for quieter operation compared to similar models
- Heavy-duty steel stand with built-in casters for easy maneuverability
