Description

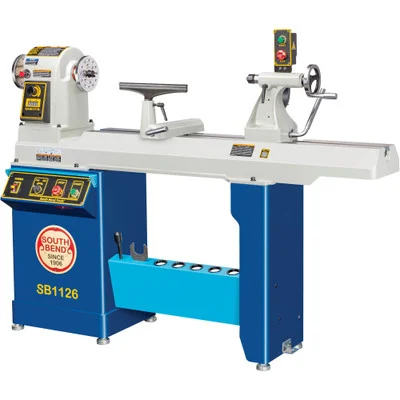

South Bend 18″ x 40″ Variable-Speed Wood Lathe (SB1126) is engineered for precision and versatility, making it ideal for a variety of woodturning projects. With a robust 3 HP motor and variable speeds from 50 to 3200 RPM, this lathe provides consistent power across a wide range of turning tasks.
This lathe’s outboard bed design is perfect for bowl turning, while the digital spindle speed readout and forward/reverse controls offer precision and convenience. Constructed with a heavy-duty cast-iron bed and tool rest, it ensures stability and durability.
- Specifications and Dimensions
- Motor: 3 HP, 220V, three-phase (with inverter for single-phase power), 8.5A
- Required power supply: 220V, single-phase, minimum 15A circuit
- Swing over bed: 18″, 35-1/2″ with bed extension
- Swing over tool rest base: 14-3/8″
- Distance between centers: 26″, 40″ with bed extension
- Spindle speed: Variable, 50–3200 RPM
- Spindle threads: 1-1/4″ x 8 TPI
- Spindle taper: MT#2
- Tailstock taper: MT#2
- Tool rest width: 12″
- Tool rest post diameter: 1″
- Overall dimensions: 69-1/2″ L x 23-1/2″ W x 50″ H
- Approximate shipping weight: 544 lbs.
- Key Features and Benefits
- Forward and reverse spindle controls for added versatility
- 6″ faceplate chucks on both ends of the spindle for convenience
- 10-degree spindle indexing for precise work
- Self-ejecting tailstock for quick and easy adjustments
- Dual emergency stop buttons for enhanced safety
