Description

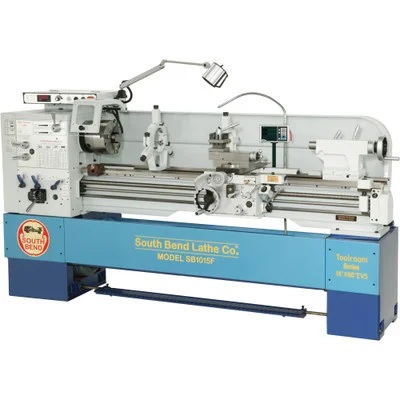

South Bend Heavy-Duty 16″ x 60″ 440V EVS Toolroom Lathe with Fagor DRO (SB1015F) offers unparalleled precision and power with a 7-1/2 HP motor and Electronic Variable Speed (EVS) control, covering a range from 20 to 2500 RPM. This lathe is designed for high-demand environments where accuracy and durability are essential.
Equipped with a Fagor DRO and a centralized lubrication system, this toolroom lathe ensures smooth operation and consistent performance. Its advanced features include a full-length emergency foot brake, a Japanese Yaskawa inverter for stable torque, and a D1-6 Camlock spindle nose, making it versatile for various threading and turning needs.
- Specifications and Dimensions
- Swing over bed: 16″
- Distance between centers: 60″
- Spindle bore: 2.0625″
- Spindle motor: 7-1/2 HP, 440V, 3-phase, 11A
- Coolant motor: 1/8 HP, 0.18A
- Swing over cross slide: 10-3/8″
- Swing over gap: 22.95″
- Cross slide travel: 9.25″
- Compound slide travel: 5.1″
- Spindle nose: D1-6 Camlock
- Taper inside spindle: MT#6
- Spindle speed: Variable, 20-2500 RPM
- RPM ranges: 20-400 low, 400-2500 high
- Inch threads: (45) 2 to 72 TPI
- Metric threads: (39) 0.2 to 14mm
- Modular threads: (18) 0.3 to 3.5
- Diametral threads: (21) 8 to 44
- Longitudinal feed: 0.002 to 0.067 IPR
- Cross feed: 0.001 to 0.034 IPR
- Number of feed selections: 17
- Tailstock barrel diameter: 2.047″
- Tailstock quill travel: 6″
- Tailstock taper: MT#4
- Footprint: 19-1/2″ x 101-7/8″
- Key Features and Benefits
- Fagor digital readout for accurate speed and position control
- Induction-hardened three V-way bed for stability and precision
- Yaskawa inverter ensures consistent torque across speed ranges
- Centralized lubrication pump for bed-ways and cross slide
- Full-length emergency foot brake for enhanced safety
