Description

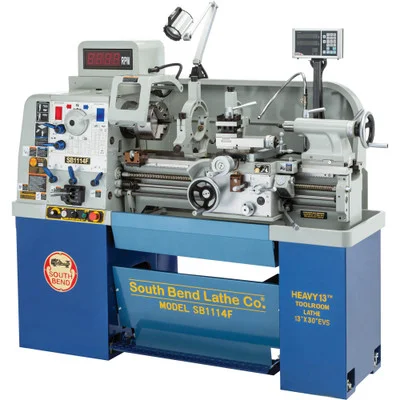

South Bend 13″ x 30″ EVS Lathe with DRO (SB1114F) is designed for high-performance, precise machining with advanced features. Powered by a 5 HP motor, this lathe offers variable speeds from 100 to 3000 RPM, making it ideal for a range of metalworking tasks.
This lathe is crafted with Meehanite castings and features the signature South Bend three V-way bed for stability and accuracy. With multiple threading options, a coolant system, and convenient tool storage, the lathe offers the versatility needed for a professional metal shop.
- Specifications and Dimensions
- Spindle motor: 5 HP, 220V, 3-phase, 15.5A (single-phase inverter compatible)
- Coolant pump motor: 1/8 HP, 0.4A
- Oil pump motor: 1/4 HP, 1.3A
- Distance between centers: 30″
- Swing over bed: 13-1/4″
- Swing over cross slide: 8″
- Swing over saddle: 13″
- Spindle bore: 1.65″
- Spindle taper: MT #5
- Spindle speed: Variable, 100 – 3000 RPM
- Cross slide travel: 7″
- Tailstock travel: 4-1/2″
- Longitudinal feeds: 0.002 to 0.067 IPR (17)
- Inch thread range: 2 to 72 TPI (45 pitches)
- Metric thread range: 0.2 to 14 mm (39 pitches)
- Overall dimensions: 71″ W x 38″ D x 60-1/2″ H
- Key Features and Benefits
- Allen Bradley electrical components for reliability and safety
- Signature South Bend three V-way bed design for exceptional stability
- Fagor digital readout for precise and repeatable measurements
- Comprehensive threading capabilities for inch, metric, modular, and diametral pitches
- Coolant system and built-in chip tray for efficient workspace maintenance
- Safety chuck guard with micro-switch shut-off for enhanced operator safety
- Convenient tool storage with an included 4-way tool post and extra chucks
