Description
South Bend 10-Inch 3 HP 220V Table Saw combines precision and power, making it ideal for professional woodworking projects. Equipped with digital readouts for blade height, blade angle, and fence positioning, this table saw ensures every cut meets exacting standards.
This table saw’s robust 3 HP motor offers enough power for complex cuts, and the quick-release blade guard and spreader add convenience and safety. Designed with a dust collection port, magnetic switch with thermal overload protection, and an angled dust chute.
- Specifications and Dimensions
- Motor: 3 HP, 220V, single-phase, 13A
- Max. depth of cut @ 90°: 3-1/8″
- Max. depth of cut @ 45°: 2-1/8″
- Distance from front of table to center of blade: 14-7/8″
- Floor-to-table height: 35-3/4″
- Arbor diameter: 5/8″
- Arbor speed: 4000 RPM
- Max. width of dado: 3/4″
- Dust port size: 4″
- Footprint: 22″ x 24″

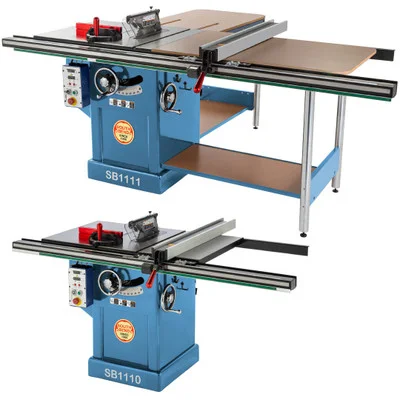

- SB1110 Specifications
- Rip capacity: 36″ right, 18″ left of blade
- Table size with extensions: 45-1/4″ W x 27″ D
- Overall dimensions: 75″ W x 47″ D x 43-1/2″ H
- Approximate shipping weight: 607 lbs.
- SB1111 Specifications
- Rip capacity: 52″ right, 18″ left of blade
- Table size with extensions: 76″ W x 65 -5/8″ D
- Overall dimensions: 91-1/2″ W x 73″ D x 43-1/2″ H
- Approximate shipping weight: 742 lbs.
- Key Features and Benefits
- Digital readouts for blade height, angle, and fence distance
- Precision-ground cast-iron table for stable cutting
- Quick-release blade guard and spreader for easy adjustments
- Magnetic switch with thermal overload protection
