Description

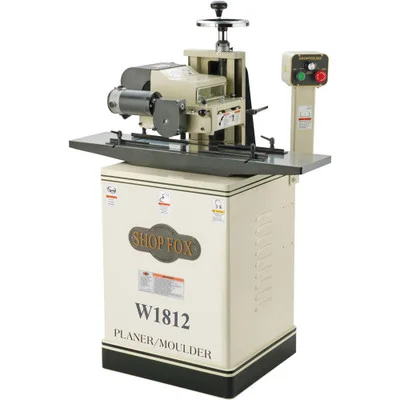

Shop Fox 2 HP 7-Inch Planer Moulder with Stand Precision and Variable Speed (W1812) combines the power of a 2 HP motor with the versatility of variable speed for precise control over your woodworking projects. With precision-ground cast-iron wings and T-slots for easy guide rail adjustment, this machine is designed for efficiency and accuracy.
This next-generation planer moulder also features an open-end design for creating curved mouldings with the optional elliptical jig. Certified to CSA and UL standards, the Shop Fox 7-inch planer moulder is a reliable and essential tool for any woodworking shop.
- Specifications and Dimensions
- Motor: 2 HP, 240V, single-phase, 10.8A
- Variable-speed feed motor: 1/8 HP
- Power transfer: cutterhead is belt drive, feed rollers are chain drive
- Cutterhead speed: 7000 RPM
- Cuts per minute: 14,000
- Cuts per inch: 64-300
- Feed rate: 0-18 FPM
- Max. profile depth: 3/4″
- Max. profile width: 6-3/4″
- Planing width: 7″
- Min. stock length: 9″
- Min. stock thickness: 1/4″
- Max. stock thickness: 7-1/2″
- Dust port: 4″
- Precision-ground cast-iron infeed and outfeed extension wings
- Pedestal-mounted control switch with variable-speed control
- Overall dimensions: 36-1/4″L x 22″W x 34-1/2″H
- Certified to CSA and UL Standards
- Approximate shipping weight: 324 lbs.
- Key Features and Benefits
- 2 HP motor for powerful performance
- Variable speed for precise control
- Precision-ground cast-iron wings for stability
- Pedestal-mounted control switch for convenience
- Open-end design for curved mouldings
- Certified to CSA and UL standards for safety and quality
