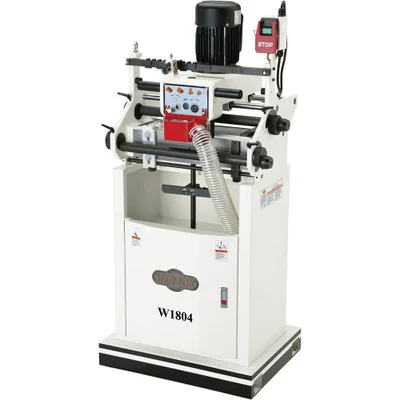

Shop Fox 11-1/4 Inch Dovetail Machine Precision Milled Cast Iron Table Frame (W1804) makes strong and attractive half-blind dovetail joints with ease. Set up this 11″ Dovetail Machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 28″ long x 11-1/4″ wide and as small as 7-7/8″ long x 2-3/8″ wide. Includes templates for four different dovetail sizes. With the Shop Fox dovetail machine, you can enhance the precision and efficiency of your woodworking projects.
- Specifications and Dimensions
- Motor: 1 HP, 110V/220V, prewired 110V, single-phase
- Table size: 19-1/2″ x 7″
- Floor to table height: 38-5/16″
- Overall size: 30-1/2″W x 57″H x 22-1/2″D
- Number of spindles: 1
- Spindle speed: 18,500 RPM
- Dovetail bit: 10° angle x 5/8″ left-hand
- Dovetail bit shank: 1/2″ (12mm)
- Dovetail templates: 1″, 1-1/2″, 2″, 2-1/2″
- Max. dovetail height: 3/4″
- Min. dovetail height: 3/16″
- Max. stock thickness: 1-3/4″
- Min. stock thickness: 13/32″
- Max. stock size: 28″L x 11-1/4″W
- Min. stock size: 7-7/8″L x 2-3/8″W
- Precision-milled cast-iron table frame
- Workpiece stops
- ON/OFF push button switch with oversized stop paddle
- 4″ dust port
- 2 camlock bar clamps
- Approximate shipping weight: 366 lbs
- Key Features and Benefits
- Motor: 1 HP, 110V/220V, single-phase, prewired 110V
- Dovetail templates: 1, 1-1/2, 2 and 2-1/2 inches
- Easy-to-read scale for setting clamps
- Precision milled cast iron table frame
- Cast aluminum carriage
- Steel stand
- Hardened and ground chrome steel slide ways
- Ball bearing linear guides
- Micro adjustable spindle head
- Quick cam clamp
- Spring loaded carriage for smooth operation
