Description

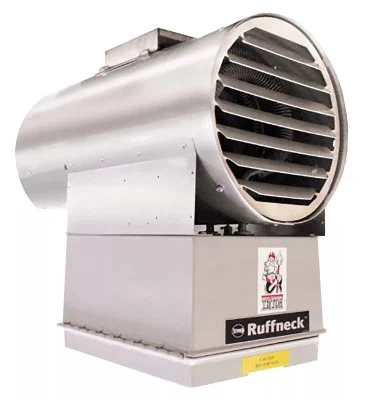

The Ruffneck CR1 Triton 600V 25kW Washdown Heater (CR1-600360-250-PD-01) provides dependable heating for industrial and commercial environments that require regular washdowns and superior corrosion resistance. This unit is built to perform in challenging conditions, delivering consistent forced air heat to maintain optimal temperatures in various applications. Its robust stainless steel construction and NEMA 4X rating ensure a long operational life even when exposed to moisture and demanding cleaning protocols. Designed with safety and efficiency in mind, the CR1 Triton heater is an essential component for maintaining a controlled climate in facilities where hygiene and durability are paramount.
KEY FEATURES AND BENEFITS:
- NEMA Type 4X Enclosure: Provides exceptional protection against water, corrosion, dust, and ice, making it suitable for washdown applications and harsh industrial settings.
- Stainless Steel Construction: Crafted from 16-gauge Type 304 stainless steel for the cabinet and Type 321 sheath/Type 304 fin elements, ensuring high resistance to corrosion and an extended product lifespan.
- Forced Air Heating: Equipped with a powerful 1/2 HP motor and 2,100 CFM blower, it efficiently distributes heat throughout the space, ensuring consistent temperature control.
- High Voltage, High Wattage Output: Operates at 600V (3-phase) with 25 kW of heating power, delivering substantial heat output of 85,300 BTU/hour for effective space heating.
- Integrated Safety Features: Includes a stainless steel automatic reset high-limit switch and 120V controls with a 50VA control transformer, enhancing operational safety and reliability.
- Flexible Mounting Options: Comes with a stainless steel wall/ceiling mounting kit, allowing for versatile installation at various angles up to 45°.
SPECIFICATIONS:
- Model: CR1-600360-250-PD-01
- Voltage: 600V (3-phase)
- Wattage: 25,000 Watts (25 kW)
- Amperage: 25.1 Amps
- Heat Output: 85,300 BTU/hour
- Enclosure Type: NEMA Type 4X
- Cabinet Material: 16-gauge Type 304 Stainless Steel
- Heating Element Material: Type 321 Stainless Steel Sheath with Type 304 Fins
- Motor Horsepower: 1/2 HP
- Motor RPM: 1725 RPM
- Motor Type: Totally Enclosed
- Blower CFM: 2,100 CFM
- Control Voltage: 120 V
- Control Transformer: 50VA
- High-Limit Switch: Automatic Reset, Stainless Steel
- Assembled Length (Depth): 23.5 inches
- Assembled Width: 20.75 inches
- Assembled Height: 32.25 inches
- Product Weight: 130 lbs
- Maximum Ambient Operating Temperature: 104°F (40°C)
- Minimum Ambient Operating Temperature: -4°F (-20°C)
- Certifications: UL Listed Type 4X, cUL, CSA Certified for Non-Hazardous Locations
HOW TO USE:
- Mounting: Securely mount the heater using the provided stainless steel wall/ceiling mounting kit in a location that ensures proper air circulation and heat distribution. Ensure the mounting surface can support the unit’s weight. The unit can be mounted up to a 45° angle.
- Electrical Connection: Have a qualified electrician connect the heater to a 600V, 3-phase power supply according to all local and national electrical codes. Verify correct wiring for voltage and amperage.
- Thermostat Setting: If equipped with a built-in thermostat or connected to an external one, set the desired temperature. The heater will cycle on and off to maintain this setting.
- Operation: Once powered, the fan will activate, drawing in ambient air over the heating elements and discharging heated air into the space.
- Washdown Procedure: When cleaning the facility, the heater’s NEMA 4X enclosure allows it to withstand washdown procedures. Ensure water pressure is kept below 70 psi during cleaning. Allow the unit to dry completely before resuming operation if heavily wetted.
- Maintenance: Periodically inspect the heater for any signs of wear or damage. Clean the exterior as needed with appropriate solutions, ensuring no water enters the electrical components. Always disconnect power before any maintenance.
BENEFITS OF USING RUFFNECK CR1 TRITON 600V 25KW WASHDOWN HEATER (CR1-600360-250-PD-01):
- Enhanced Hygiene: Designed specifically for environments requiring frequent cleaning, making it ideal for industries with strict sanitation standards like food and beverage processing.
- Longevity in Harsh Conditions: Its NEMA 4X rating and stainless steel construction provide exceptional resistance to moisture, corrosion, and industrial contaminants, extending the product’s lifespan.
- Consistent Thermal Performance: Delivers uniform heating across the intended area, preventing cold spots and ensuring a stable working environment.
- Safety Compliance: Fully certified by UL, cUL, and CSA for non-hazardous locations, meeting rigorous safety standards for industrial equipment.
- Reduced Downtime: The robust design and washdown capability mean less worry about damage during cleaning cycles, contributing to consistent operation.
- Versatile Installation: Offers flexibility in mounting, allowing for optimal placement within various facility layouts.
FEATURES:
- Robust 16-gauge 304 stainless steel cabinet.
- Spiral-finned heating elements with 321 stainless steel sheaths.
- Epoxy-coated fan blade for enhanced durability.
- Totally enclosed, permanently lubricated ball bearing motor.
- Automatic reset high-limit safety thermostat.
- Factory-installed 120V control transformer for operational reliability.
- Stainless steel wall/ceiling mounting bracket included.
- Designed to withstand washdown pressures under 70 psi.
- Suitable for continuous operation in environments with extreme temperatures from -4°F to 104°F.
