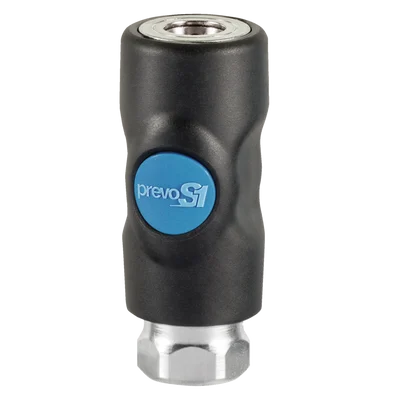

Prevost NPT 1/4″ Industrial 1/4″ ID Female Coupler (ISI061201)

Description

The Prevost NPT 1/4″ Industrial 1/4″ ID Female Coupler (ISI061201) is a high-performance component designed for safe and efficient integration into compressed air systems. It provides a reliable and leak-free connection for air tools and hoses, ensuring optimal pneumatic performance. With its advanced one-push safety system, this coupler allows controlled air release and prevents dangerous hose whip during disconnection. The composite body is lightweight and non-marring, while the robust internal components deliver long-lasting durability and consistent performance in industrial environments.

KEY FEATURES AND BENEFITS:

• Enhanced Safety System: Incorporates a unique “one push” mechanism that safely purges downstream air, preventing hose whip during disconnection.
• Optimal Airflow: Ensures smooth air transfer for improved efficiency and reliable tool operation.
• Lightweight Construction: Composite body reduces user fatigue and protects delicate surfaces from scratches.
• Reliable Connection: Maintains a secure and leak-resistant seal with Prevost Industrial Interchange Style air plugs.
• Broad Compatibility: Features a 1/4″ NPT female thread and 1/4″ ID passage for compatibility with standard pneumatic setups.

SPECIFICATIONS:

• Net weight: 0.097 kg
• Flow rate: 29 CFM (at 87 PSI, ΔP = 8.69 PSI)
• ID passage: 1/4″
• Max. output pressure: 174 PSI
• Profile: INDUSTRIAL
• Female thread: NPT1/4
• Temperature: 5°F to 158°F
• A (Length): 2.68 inches
• B (Width): 1.18 inches
• C (Height): 0.79 inches

HOW TO USE:

1. Prepare Connection Points: Ensure the male plug is clean and free of debris.
2. Connect Tool/Hose: Push the male plug firmly into the female coupler until you hear or feel a positive click.
3. Verify Connection: Gently tug on the connection to ensure it is properly latched.
4. Operate Equipment: Once connected, the air system is ready for use.
5. Disconnect Safely: Press the release button to purge trapped air and remove the male plug safely.

BENEFITS OF USING PREVOST NPT 1/4″ INDUSTRIAL 1/4″ ID FEMALE COUPLER (ISI061201):

• Improves workplace safety by preventing hose whip.
• Supports consistent and efficient pneumatic tool performance.
• Reduces wear on hoses and fittings through controlled disconnection.
• Streamlines tool changes with quick and easy operation.
• Ensures reliable, leak-free connections.
• Protects surfaces from scratches with its non-marring body.
• Lightweight design reduces user strain during handling.

FEATURES:

• Push-button safety release for secure disconnection.
• Durable internal components built for long-term use.
• Nitrile seal ensures a tight, leak-free air connection.
• Anti-static composite material enhances safety.
• Compact dimensions for easy use in confined spaces.
• Resistant to a wide range of operating temperatures.
• Clear thread and passage size markings for easy identification.
