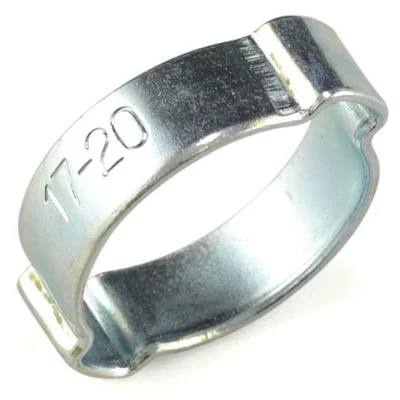

Prevost 17-20mm 10 Treated Steel Double Ear Clamp (1720)

Description

The Prevost 17-20mm 10 Treated Steel Double Ear Clamp (1720) is designed to create secure, leak-proof connections for a wide range of hose applications. Also referred to as “Lemon Clips” or 2-ear clamps, these treated steel clamps offer a simple yet highly effective installation process, ensuring a firm and lasting hold. Commonly used in both maintenance and original equipment manufacturing (OEM) settings, they provide reliable performance across various industries.

KEY FEATURES AND BENEFITS:

• Secure & Permanent Connection: Shake-proof design resists loosening, even under vibration or pressure.
• Corrosion Resistance: Constructed from galvanized and treated steel for excellent rust protection.
• Easy & Quick Installation: Enables fast and efficient hose clamping for both professionals and DIY users.
• Versatile Application: Suitable for air, fluid, gas, steam, and low-pressure hydraulic systems.
• Hose Protection: Provides a tight grip without damaging the hose material.
• Cost-Effective Solution: Combines high quality with an economical price point.
• 360-Degree Clamping: Ensures uniform pressure distribution for a reliable seal.

SPECIFICATIONS:

• Fit Tube Diameter Range: 17-20mm
• Width: 7.5mm
• Thickness: 1.3mm
• Material: Treated Steel (Galvanized)
• Included: Pack of 10 clamps

HOW TO USE:

1. Measure Hose Outer Diameter: Measure the outer diameter of the hose you intend to clamp.
2. Select Clamp Size: Add 1mm to your hose measurement and choose the appropriate clamp size (e.g., 18mm hose fits a 17-20mm clamp).
3. Position the Clamp: Slide the clamp onto the fitting or part where the hose will be connected.
4. Insert the Hose: Push the hose over the fitting, ensuring it is properly seated.
5. Crimp the Clamps: Using pincer pliers, close one ear of the clamp completely.
6. Final Crimp: Close the second ear until the first ear slightly opens (~1.5mm), creating a spring effect for added tension.
7. Removal: To remove, cut across the clamp width using pliers.

BENEFITS OF USING PREVOST 17-20MM 10 TREATED STEEL DOUBLE EAR CLAMP (1720):

• Provides long-term reliability with treated steel construction for rust resistance.
• Delivers superior clamping force for leak-proof connections.
• Ensures a tamper-proof and permanent seal.
• Prevents hose wear and tear at connection points.
• Enhances safety and operational efficiency across various applications.

FEATURES:

• Precision-engineered for a snug, secure grip.
• Low-profile design suitable for tight spaces.
• Constructed from high-grade galvanized steel.
• Tamper-proof design for secure connections.
• Durable under a wide temperature range.
• Smooth, deburred edges for safe handling.
• Even pressure distribution for a reliable seal.
• Compatible with standard pincer pliers for easy crimping.
