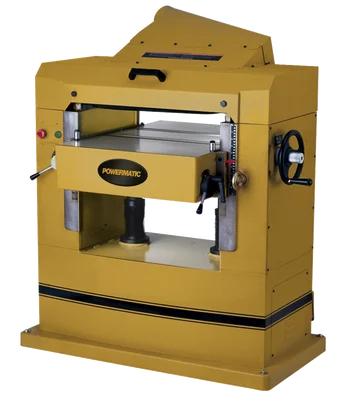

Powermatic 201HH Model 7.5HP 22″ Planer w/ Helical Head (1791268)

Description

The Powermatic 201HH Model 7.5HP 22″ Planer w/ Helical Head (1791268) is a heavy-duty machine designed for workshops handling demanding planing tasks. This 22-inch industrial planer features a powerful 7.5 horsepower, three-phase, 230-volt motor, capable of tackling even the toughest hardwoods.

KEY FEATURES AND BENEFITS:

• Helical Cutterhead with 150 Four-Sided Carbide Inserts: Provides superior finishing quality with reduced noise.
• Replaceable Carbide Inserts: Allows for easy replacement without complex adjustments, minimizing downtime.
• Massive Cast Iron Construction: Absorbs vibrations for consistent planing accuracy.
• Oversized Precision-Ground Cast Iron Table: Rides on two large lead screws for stable support during heavy-duty use.
• Two Feed Speeds (20 and 30 FPM): Offers flexibility for roughing cuts and fine finishing.
• Segmented Infeed Roller with Integrated Chipbreaker: Efficiently planes multiple boards simultaneously.
• Roller Bearing-Mounted Infeed and Outfeed Rollers: Ensure smooth operation and extended service life.
• Adjustable Bed Rollers: Enhance feeding for both rough and finished lumber.
• 5-Inch Dust Chute: Facilitates connection to a dust collection system, keeping the work area clean.
• Includes Tool Kit, Adjustable Foot Pads: For maintenance and level placement.

SPECIFICATIONS:

• Maximum Planing Width: 22 inches
• Maximum Planing Thickness: 9-1/4 inches
• Maximum Depth of Cut: 3/16 inches
• Motor: 7.5 horsepower, three-phase, 230-volt
• Cutterhead Speed: 4800 RPM
• Feed Rates: 20 and 30 feet per minute (FPM)
• Dust Collection Port Diameter: 5 inches
• Overall Dimensions: 42 inches (H) x 49 inches (W) x 59 inches (L)
• Weight: 1300 pounds

HOW TO USE:

1. Place the planer on a stable surface and adjust the foot pads for level placement.
2. Connect the planer to a suitable three-phase, 230-volt power source.
3. Adjust the height of the table using the handwheels for the desired planing depth.
4. Select the appropriate feed speed (20 or 30 FPM) for your cutting requirements.
5. Engage the helical cutterhead and monitor the planing process.
6. Connect the 5-inch dust chute to a dust collection system to maintain a clean workspace.
7. Use the included tool kit for routine maintenance and adjustments.

BENEFITS OF USING POWERMATIC 201HH HELICAL PLANER:

• Superior Finish: Helical cutterhead with carbide inserts ensures smooth, high-quality surface.
• Reduced Noise: Operates quieter compared to traditional planer heads.
• Robust Construction: Massive cast iron body absorbs vibrations for consistent results.
• Flexible and Efficient: Two feed speeds and adjustable rollers for versatile woodworking tasks.
• Clean and Safe: 5-inch dust chute for effective dust collection, maintaining a cleaner work environment.
