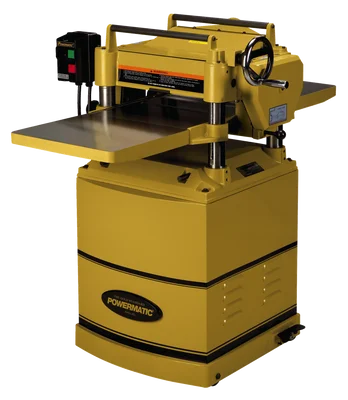

Powermatic 15HH 3HP 1PH 15″ Planer w/ Helical Cutterhead (1791213)

Description

The Powermatic 15HH 3HP 1PH 15″ Planer w/ Helical Cutterhead (1791213) will help you achieve professional woodworking results with this heavy-duty 15-inch planer featuring a Byrd Shelix Helical Cutterhead. This innovative cutterhead design delivers exceptionally smooth and quiet operation, along with a flawless finish on your wood projects.

KEY FEATURES AND BENEFITS:

• 3 HP TEFC Motor: Provides ample power for even the most demanding hardwoods.
• Byrd Shelix Helical Cutterhead: Delivers unmatched cutting performance with 98 four-sided carbide inserts that require minimal adjustments.
• Two-Speed Gearbox: Allows you to choose between 16 or 20 feet per minute feed rates to optimize planing for different materials and thicknesses.
• Large Cast Iron Table (15″ x 48″ with extensions): Ensures stability and support for larger workpieces.
• Digital Readout (DRO – Sold Separately): Provides ultimate precision in cut depth (not included with this model).
• Automatic Chain Tensioner: Maintains consistent performance and extends the life of the drive system.
• Cast Iron Handwheel: Facilitates effortless adjustment of the table height for versatile planing tasks.
• Serrated Infeed Roller & Smooth Outfeed Roller: Ensures positive material feed and prevents marring of your workpiece.
• Steel Top-Mounted Return Rollers: Expedites repetitive cutting operations.
• Angled 4-Inch Dust Port: Connects to your dust collection system for a cleaner work environment.
• Lockable Casters: Provides easy maneuverability around your shop.

SPECIFICATIONS:

• Motor: 3 HP TEFC, 230V
• Cutterhead Diameter: 2-7/8″
• Maximum Planing Width: 14-7/8″
• Maximum Planing Thickness: 6″
• Maximum Depth of Cut: 1/4″ (1/8″ for full width)
• Feed Rates: 16 & 20 feet per minute (FPM)
• Table Size: 15″ x 48″ (with extensions)
• Dust Port Diameter: 4″
• Overall Dimensions: 48″ x 28″ x 43-1/2″
• Note: Digital Readout (DRO) is sold separately.

HOW TO USE:

• Step 1: Ensure the planer is on a stable surface and connected to a power source.
• Step 2: Adjust the table height using the cast iron handwheel to match the thickness of your workpiece.
• Step 3: Select the desired feed rate (16 or 20 FPM) using the two-speed gearbox.
• Step 4: Position your workpiece on the infeed table and activate the planer.
• Step 5: Feed the workpiece steadily through the planer, ensuring smooth and consistent pressure.
• Step 6: Utilize the steel top-mounted return rollers for efficient material handling.
• Step 7: Connect the angled 4-inch dust port to your dust collection system to maintain a clean work environment.

BENEFITS OF USING THE POWERMATIC 15HH 3HP 1PH 15″ PLANER W/ HELICAL CUTTERHEAD (1791213):

• Achieve professional-grade woodworking results with the Byrd Shelix Helical Cutterhead.
• Handle large workpieces with ease on the expansive cast iron table.
• Enjoy quiet and smooth operation, minimizing noise and disruption.
• Optimize planing for various materials with the two-speed gearbox.
• Maintain a clean and safe work environment with efficient dust collection.
• Benefit from easy maneuverability around your shop with lockable casters.
• Extend the life of your planer with features like the automatic chain tensioner.

FEATURES:

• Byrd Shelix Helical Cutterhead for exceptional cutting performance.
• Large 15″ x 48″ cast iron table for stability and support.
• Two-speed gearbox for optimized planing operations.
• Cast iron handwheel for easy table height adjustment.
• Serrated infeed roller and smooth outfeed roller for efficient material feed.
• Top-mounted steel return rollers for repetitive cuts.
• Angled 4-inch dust port for effective dust management.
• Lockable casters for easy shop mobility.
