Description
The Phoenix USA DOT Sim Set GDF16 w/ Air Plus AP4 (GDF16X) is a comprehensive solution designed to elevate the appearance of your 2003-2004 Ford F350 dual-rear-wheel truck. This kit features a polished stainless steel finish, providing a significant visual upgrade to your vehicle’s wheels. Specifically engineered for 16-inch by 6-inch dual-rear-wheel applications with an 8-lug on 170mm bolt circle and M14 x 1.5″ lug studs, this bolt-on simulator set offers a seamless and secure fit. The inclusion of the Air Plus AP4 braided stainless valve extensions for the inner rear wheels addresses the common challenge of accessing these valves for inflation and pressure checks. This kit provides both aesthetic enhancement and practical benefits for maintaining your vehicle.
KEY FEATURES AND BENEFITS:
- Enhanced Appearance: The polished stainless steel finish dramatically improves the overall look of your Ford F350 dual-wheel truck.
- Vehicle-Specific Fit: Designed precisely for 2003-2004 Ford F350 dual-rear-wheel models, ensuring proper fitment and aesthetics.
- Complete Set: Includes four wheel covers (two front dished, two rear deep dished) to outfit your entire dual-wheel setup.
- Easy Bolt-On Installation: The stud-mount, bolt-on design allows for straightforward installation without the need for specialized tools.
- Inner Tire Access: The included Air Plus AP4 braided stainless valve extensions simplify the process of checking and inflating the inner rear tires.
- Dished Front Simulators: Front simulators are designed with a dish to complement the front wheel appearance.
- Deep Dished Rear Simulators: Rear simulators feature a deep dish to contour effectively with the rear wheels.
- Accessible Front Hubs: Front simulators have pop-out centers, providing access to manual locking hubs if your vehicle is equipped with them.
- Durable Construction: Made from polished stainless steel for longevity and resistance to the elements.
SPECIFICATIONS:
- Product Name: Phoenix USA DOT Simulator Kit w/ Air Plus AP4
- Product Code: GDF16X (also GDF16)
- Vehicle Compatibility: 2003-2004 Ford F350 2WD/4WD, Dual Rear Wheel
- Wheel Size Compatibility: 16″ Diameter x 6″ Width
- Lug Pattern: 8 Lug on 170mm Bolt Circle
- Lug Stud Size: M14 x 1.5″
- Hand Hole Requirement: 4 Hand Hole Wheels
- Material: Polished Stainless Steel

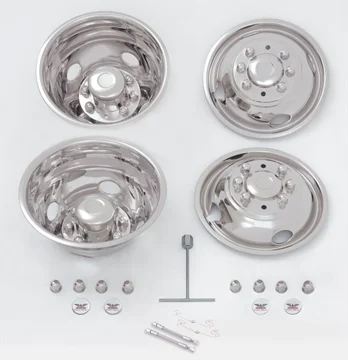

- Kit Contents: 2 Front Wheel Simulators (Dished), 2 Rear Wheel Simulators (Deep Dished), Air Plus AP4 Valve Extension Kit, Mounting Hardware, Installation Tool, Instruction Sheet
- Front Simulator Design: Dished with Pop-Out Center
- Rear Simulator Design: Deep Dished
- Mounting Type: Bolt-On, Stud Mount
HOW TO USE:
- Preparation: Ensure your vehicle is parked on a level surface with the parking brake engaged. Gather all components of the Phoenix USA DOT Simulator Kit and the provided installation tool.
- Front Wheel Installation:
- Position one of the front wheel simulators against the wheel, aligning the lug holes.
- Using the provided mounting hardware (typically lug nut extensions and nuts), thread them onto the existing wheel studs.
- Tighten the nuts evenly in a star pattern until the simulator is securely fastened to the wheel. Avoid over-tightening.
- If your vehicle has manual locking hubs, ensure the pop-out center of the front simulator is accessible.
- Repeat this process for the other front wheel.
- Rear Wheel Installation:
- Locate the Air Plus AP4 valve extension kit. Install these extensions onto the inner rear wheel valve stems before installing the simulators. Ensure they are securely attached.
- Position one of the rear wheel simulators (deep dished) against the corresponding rear wheel, aligning the lug holes.
- Using the provided mounting hardware, thread them onto the existing wheel studs.
- Tighten the nuts evenly in a star pattern until the simulator is securely fastened. Avoid over-tightening.
- Repeat this process for the other rear wheel.
- Final Check: Once all simulators are installed, double-check that all mounting hardware is secure. Ensure the valve extensions on the inner rear wheels are accessible. Refer to the instruction sheet included with the kit for any specific torque recommendations or additional steps.
BENEFITS OF USING THE PHOENIX USA DOT SIM SET GDF16 W/ AIR PLUS AP4 (GDF16X):
- Improved Aesthetics: Instantly transforms the look of your truck’s wheels with a clean and polished appearance.
- Simplified Tire Maintenance: The Air Plus AP4 valve extensions make it significantly easier to access and maintain the correct air pressure in your inner rear tires, promoting even wear and optimal performance.
- Protection: The stainless steel simulators can offer a degree of protection to the underlying wheels from road debris and elements.
- Easy Installation: The bolt-on design allows for a relatively quick and simple installation process, often without the need for professional assistance.
- Long-Lasting Material: Constructed from polished stainless steel, the simulators are designed to resist corrosion and maintain their appearance over time.
- Maintained Functionality: The pop-out centers on the front simulators ensure continued access to essential wheel components like manual locking hubs.
FEATURES:
- Polished Stainless Steel Construction: Provides a bright, rust-resistant finish for lasting visual appeal.
- Direct Bolt-On Application: Utilizes existing wheel studs for a secure and straightforward mounting process.
- Front Simulators with Outer Dish: Contributes to a balanced and stylish look for the front wheels.
- Rear Simulators with Deep Dish Contour: Designed to seamlessly follow the shape of the rear dual wheels.
- Included Braided Stainless Valve Extensions: Offers enhanced durability and easier access to inner rear tire valves.
- Pop-Out Center Caps (Front): Allows convenient access to front manual locking hubs without removing the entire simulator.
- Specifically Engineered for 2003-2004 Ford F350 Dual-Wheel: Ensures precise fitment and compatibility.
- Complete Four-Piece Kit: Provides full coverage for all four rear wheels and both front wheels.
