Description

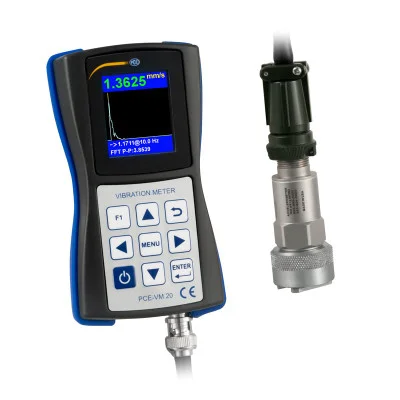

PCE Instruments Vibration Meter (PCE-VM 20) is a professional tool for measuring machine vibrations, ensuring optimal performance and early fault detection. This vibration meter provides real-time FFT analysis, allowing users to analyze frequency components and diagnose issues such as misalignment, imbalance, and bearing defects.
Designed for industrial applications, this device complies with DIN ISO 10816 standards for direct evaluation of machine vibrations. With multiple measurement modes, including vibration acceleration, velocity, and displacement, this meter is an essential tool for predictive maintenance.
- Specifications and Dimensions
- Vibration Acceleration: 0 … 200 m/s², RMS and Peak-Peak
- Vibration Velocity: 0 … 200 mm/s, RMS
- Vibration Displacement: 0 … 2000 μm, Peak-Peak
- Accuracy: ± 5%
- Operating Modes: Vibration, temperature, speed
- Measurement Parameters: Frequency, vibration acceleration, vibration velocity, FFT spectrum
- Units: Hz, mm/s², mm/s, μm, RPM
- Interface: USB 2.0
- Storage: 4GB micro SD card
- Battery Life: Up to 8 hours
- Battery Type: Lithium polymer
- Display: 128 x 160 pixel color LCD
- Operating Temperature: -10 … 55°C / 14 … 131°F
- Humidity: ≤ 80% RH non-condensing
- Dimensions: 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in
- Weight: Approx. 150 g / < 1 lb
- Key Features and Benefits
- Real-time FFT analysis for identifying machine faults
- Complies with DIN ISO 10816 standards for machine vibration assessment
- Multi-mode measurement for vibration acceleration, velocity, and displacement
- Color LCD display with an intuitive interface for easy readings
- Long-lasting lithium polymer battery with up to 8 hours of operation
- USB 2.0 interface for data transfer and software integration
- Compact and lightweight design for on-site inspections
- 4GB micro SD card for extensive data storage
