Description

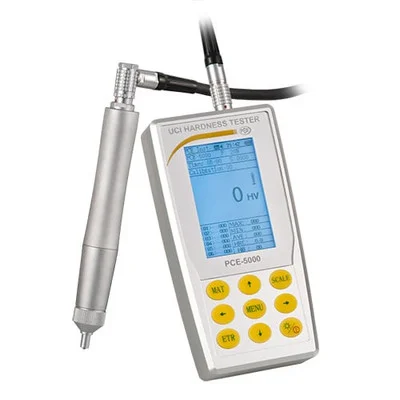

PCE Instruments UCI Hardness Tester (PCE-5000) is a professional device designed for precise metal hardness testing. Using the ASTM A1038 ultrasonic contact impedance (UCI) method, this tester ensures non-destructive hardness measurement with minimal surface impact.
This UCI hardness tester offers a rapid 2-second measurement time and supports multiple hardness scales, including Rockwell, Brinell, Vickers, and MPa tensile strength. The device is equipped with a backlit LCD, simple calibration, and an RS-232 interface for data transfer.
- Specifications and Dimensions
- Measurement Method: Ultrasonic contact impedance (UCI) per ASTM A1038
- Measuring Range:
- Rockwell: 61 – 85.6 HRA, 41 – 100 HRB, 20.3 – 68 HRC
- Brinell: 85 – 650 HB
- Vickers: 50 – 999 HV
- Tensile Strength: 255 – 2180 N/mm²
- Measurement Accuracy:
- Rockwell: ±1.5 HR
- Brinell: ±3% HB
- Vickers: ±3% HV
- Minimum Material Thickness: 2 mm / 0.08 in
- Measurement Time: 2 seconds
- Display: LCD with backlight
- Memory: Stores up to 2000 measurement groups and 20 calibration sets
- Power Supply: 4.2V rechargeable battery (4800 mAh)
- Battery Life: Approx. 10 hours of operation at full charge
- Operating Temperature: -10 … 40°C / 14 … 104°F, ≤85% RH
- Storage Temperature: -20 … 60°C / -4 … 140°F, ≤85% RH
- Dimensions: 162 x 81 x 31 mm / 6.38 x 3.19 x 1.22 in
- Weight: Approx. 755 g / 1.67 lb (including probe)
- Key Features and Benefits
- Fast 2-second measurement time for efficient hardness testing
- Supports Rockwell, Brinell, Vickers, and MPa tensile strength units
- Non-destructive testing method with minimal surface impact
- LCD screen with backlight for easy readability in any lighting
- 360° measurement capability for flexible testing applications
