Description

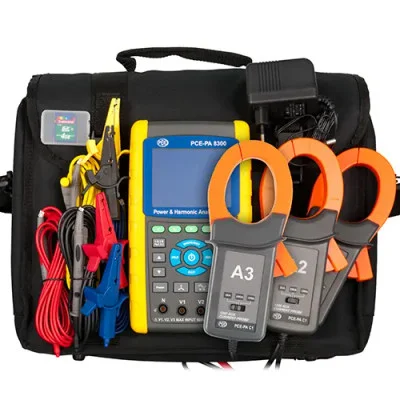

PCE Instruments Power Analyzer is a high-precision tool designed to measure and analyze electrical parameters in single-phase and three-phase systems. It records voltage, current, power, and energy consumption, making it ideal for industrial power monitoring and electrical diagnostics.
This power analyzer features an SD card for real-time data logging, a large LCD screen for live measurements, and current clamps for cables up to 50 mm in diameter. It allows long-term data collection with adjustable logging intervals.
- Specifications and Dimensions
- Voltage Measurement Range: 10 V … 600 V AC
- Current Measurement Range: PCE-PA 8300-1: 20 A … 1200 A AC, PCE-PA 8300-2: 30 A … 3000 A AC
- Power Measurement Range: 0 kW … 9.999 MW
- Simultaneous Display of Harmonics and Waveform
- Power Factor Measurement Range: 0 … 1
- Harmonic Spectrum Measurement up to 50th Order
- Frequency Measurement Range: 45 Hz … 65 Hz
- Large LCD Graphic Display with Backlight
- Supports SD Card Storage for Data Logging
- Data Output: USB or RS-232
- Operating Temperature: 0º C … 50º C
- Weight: 948 g (with batteries)
- Dimensions: 225 mm x 125 mm x 64 mm
- Key Features and Benefits
- Performs real-time power measurement and harmonic analysis
- Large LCD display for monitoring multiple parameters simultaneously
- Supports voltage up to 600V and current up to 1200A
- Includes SD card storage for long-term data collection
- Adjustable data logging interval from 2 to 7200 seconds
- Complies with IEC 1010 and CAT III 600V safety standards
- Allows power factor and phase angle measurement
- Ideal for industrial energy monitoring and electrical troubleshooting
