Description

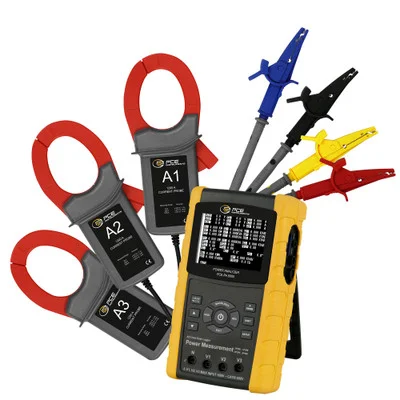

PCE Instruments Three-Phase Power Analyzer (PCE-PA 8000) is a powerful tool for measuring and analyzing electrical parameters in single-phase and three-phase systems. With its ability to monitor voltage, current, power, and energy, it is ideal for professionals in power distribution and industrial maintenance.
Equipped with an SD card slot, the power analyzer allows real-time data logging for extended measurements. The device features a 3.7-inch LCD screen for clear data visualization, while its current clamps accommodate cables up to 50 mm in diameter. This device meets IEC 1010 and CAT III 600V safety standards.
- Specifications and Dimensions
- Voltage Measurement Range: 10 V … 600 V AC
- Current Measurement Range: 20 A, 200 A, 1200 A
- Active Power Range: 0 W … 9.999 MW
- Apparent Power Range: 0 KVA … 9.999 MVA
- Reactive Power Range: 0 KVAR … 9.999 MVAR
- Power Factor Measurement Range: 0 … 1
- Phase Angle Measurement Range: -180º … 180º
- Frequency Measurement Range: 45 Hz … 65 Hz
- 3.7-inch LCD Display with LED Backlight
- Supports SD card up to 16 GB
- Data Output: USB or RS-232
- Operating Temperature: 0º C … 50º C
- Weight: 948 g (with batteries)
- Dimensions: 225 mm x 125 mm x 64 mm
- Key Features and Benefits
- Measures and records power in single-phase and three-phase circuits
- Large LCD display for real-time monitoring
- Supports voltage up to 600V and current up to 1200A
- SD card storage for easy data export and analysis
- Adjustable sampling rate from 2 to 7200 seconds
- Complies with IEC 1010 and CAT III 600V safety standards
- Includes power factor and phase angle measurement
- Data transfer via USB or RS-232 for further analysis
- Includes
- 1 x Three-Phase Power Analyzer PCE-PA 8000
- 3 x Current Clamps
- 4 x Test Cables
- 4 x Alligator Clips
- 1 x 2 GB SD Card
- 1 x 9V DC Mains Component
- 8 x 1.5V AA Batteries
- 1 x Carrying Case
