Description

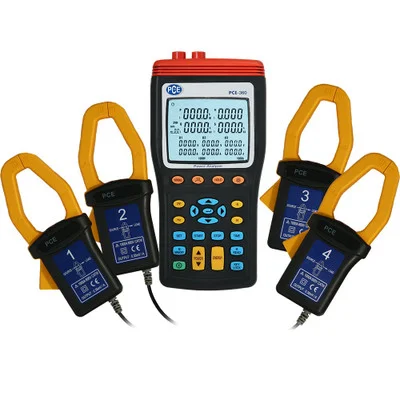

PCE Instruments Three Phase Power Analyzer (PCE-360) is a powerful device designed for analyzing power quality and energy consumption in industrial and electrical systems. It measures voltage, current, power factor, phase angle, frequency, and harmonic distortion, providing valuable insights for power quality monitoring and troubleshooting.
With a large LCD display that shows up to 10 measurements simultaneously, this three-phase power analyzer is perfect for both real-time data analysis and long-term monitoring.
- Specifications and Dimensions
- AC Voltage Measurement Range: +10 V … +999.9 V
- AC Current Measurement Range: +3 A … +999.9 A
- Effective Power Range: 0.15 kW … +999.9 kW
- Power Factor Measurement: -1 … +1
- Phase Angle Range: -180° … +180°
- Frequency Measurement: +40 Hz … +60 Hz
- Harmonic Measurement: 1st to 63rd order
- Data Storage: Up to 10,000,000 sets of measurements
- Storage Medium: SD Card (4GB included)
- Display: Large LCD with simultaneous readings
- Automatic Power Off: After 30 minutes of inactivity
- Power Supply: 12V DC (batteries or power adapter)
- Protection Class: IP30 / IEC 61 010, 600V / CAT III
- Operating Temperature: 0 … 40°C, 85% RH
- Dimensions: 235 x 117 x 54 mm / 9.25 x 4.61 x 2.13 in
- Weight: 730 g / 1.61 lbs
- Key Features and Benefits
- Measures voltage, current, power factor, phase angle, and frequency
- Harmonic analysis up to the 63rd order for comprehensive power quality checks
- Real-time monitoring and long-term data logging for up to 578 days
- Large LCD screen displaying up to 10 measurements simultaneously
- Memory storage for up to 10,000,000 data points
- Includes four current clamps, measuring leads, and alligator clips
- Data transfer via USB cable and Windows-compatible software
- Battery-saving automatic shutdown feature
- Includes
- 1 x PCE-360 Power Quality Analyzer
- 4 x Current Clamps
- 4 x Measuring Leads
- 4 x Alligator Clips
- 8 x 1.5V AA Batteries
- 1 x Power Adapter
- 1 x USB Cable
- 1 x PC Software CD-ROM
- 1 x User Manual
- 1 x Carrying Case
