Description

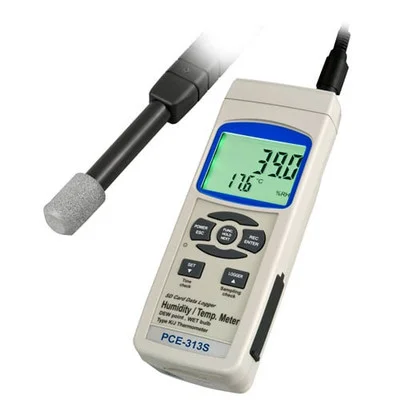

PCE Instruments Thermo-Hygrometer (PCE-313 S) is a professional-grade climate meter designed for accurate humidity and temperature monitoring. Equipped with an external probe, this device measures relative humidity, temperature, dew point, and wet bulb temperature in real time, making it ideal for HVAC, environmental studies, and industrial applications.
The PCE Instruments Thermo-Hygrometer features an integrated SD card slot (1-16 GB) for data logging, allowing for long-term recording without the need for continuous supervision. Users can transfer recorded data directly to a PC for analysis in Excel format.
- Specifications and Dimensions
- Humidity range: 5 … 95% RH
- Temperature range: 0 … 50°C / 32 … 122°F
- Type K temperature range: -50 … 1300ºC / -58 … 2372°F
- Dew point range: -25.3 … 48.9ºC / -13.5 … 120°F
- Wet bulb temperature range: -21.6 … 50ºC / -6.9 … 122°F
- Resolution: 0.1% RH / 0.1°C / 0.18°F
- Accuracy: ±0.8ºC / 0.44ºF (temperature), ±3% RH (humidity)
- Memory: SD card (1 … 16 GB) with real-time data logging
- Measurement rate: Adjustable (1 … 3600 seconds)
- Display: Large LCD (52 x 38 mm) with backlight
- Interface: RS-232
- Power supply: 6 x 1.5V batteries or optional 9V power adapter
- Operating conditions: 0 … 50°C / 32 … 122ºF, < 85% RH
- Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
- Weight: Approx. 490 g / 1.1 lbs
- Key Features and Benefits
- Measures temperature, humidity, dew point, and wet bulb temperature
- Real-time data recording with SD card memory (1 to 16 GB)
- Data saved in Excel format for easy analysis
- External probe allows for flexible environmental monitoring
- Adjustable measurement rate from 1 to 3600 seconds
- Large LCD screen with backlight for easy reading
- Tripod mountable for hands-free operation
- Battery-powered with optional AC adapter for extended use
- Durable, compact design for industrial and field applications
- Includes
- 1 x PCE Instruments Thermo-Hygrometer (PCE-313 S) with sintered hood
- 1 x Combined sensor for temperature and humidity
- 1 x SD card (2 GB)
- 1 x Card reader
- 6 x Batteries
- 1 x User manual
