Description

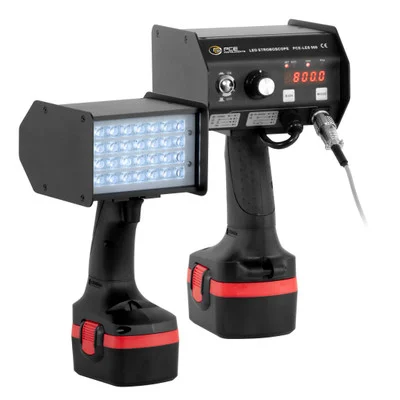

PCE Instruments Stroboscope Light (PCE-LES 500) is a high-precision device designed for industrial motion analysis and maintenance applications. With a broad measurement range of 50 to 50,000 FPM, it ensures accurate synchronization of fast-moving objects. Its durable metal housing and ergonomic handle provide secure operation, even in demanding environments.
The PCE Instruments Stroboscope Light is equipped with 28 high-intensity LEDs, offering 2439 lux at 50,000 FPM from a 20 cm distance. Its adjustable phase shift of 0 to 359 degrees enables precise synchronization.
- Specifications and Dimensions
- Flash Frequency: 50 to 50,000 FPM
- Resolution: 0.1 FPM
- Accuracy: ±0.01% of measured value
- Light Source: 28 high-power LEDs
- Illuminance: 2439 lux at 50,000 FPM / 20 cm
- Phase Shift: 0 to 359 degrees
- Pulse Width: 8 to 100 µs
- Trigger Input:2.5V peak, min. pulse width 20 µs
- Display Type: 7-segment display
- Power Supply: 14.4V DC, Ni-MH rechargeable battery
- Operating Time: 4 hours per charge
- Device Weight: 903 g / 1.99 lbs
- Device Dimensions: 270 x 130 x 140 mm
- Operating Temperature: 0 to 50°C
- Key Features and Benefits
- High-power LED stroboscope for industrial motion analysis
- Wide flash frequency range for precise synchronization
- Adjustable phase shift for fine-tuned motion study
- External trigger input for automated control
- Durable metal housing with ergonomic design
- Removable rechargeable battery with additional spare for extended use
- Ideal for measuring steel coils, flat sheets, and rotating machinery
- Compact and portable for easy operation in various environments
