Description

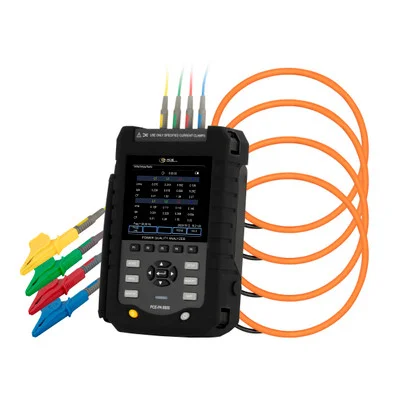

PCE Instruments Power Quality Analyzer with Data Logging and USB Interface (PCE-PA 8500) is a professional-grade device designed for comprehensive power analysis in electrical systems. This power meter measures voltage, current, frequency, and power consumption with high accuracy. It is ideal for industrial applications, energy audits, and electrical diagnostics.
With an integrated data logger, the analyzer captures extensive measurement data on its 8 GB internal storage. The device supports real-time waveform visualization, harmonic analysis, and transient detection, allowing for detailed energy monitoring.
- Specifications and Dimensions
- Voltage Measurement Range: 1 V … 1000 V DC / AC
- Current Measurement Range: 15 A … 3000 A AC
- Power Factor Measurement: 0 … 1
- Switch-On Current Range: 15 A … 3000 A AC
- Frequency Measurement: 42.5 Hz … 414 Hz
- Harmonic Analysis: 1st to 50th order
- Data Storage Capacity: 8 GB
- Display Type: 2.6-inch TFT Color Display
- Data Interface: USB, Ethernet
- Safety Standard: 600V CAT IV / 1000V CAT III
- Battery Capacity: 3800 mAh Nickel-Metal Hydride Battery
- Operating Temperature: 0 … 40 °C
- Device Weight: 1880 g
- Dimensions: 260 x 190 x 67 mm
- Key Features and Benefits
- Comprehensive power measurement including voltage, current, and frequency
- Harmonic and waveform analysis for detailed power quality assessment
- Data logging with 8 GB storage for long-term monitoring
- LAN and USB connectivity for easy data access and remote operation
- Graphical representation of waveform and vector graphics
- Detects sags, surges, and flicker in power supply
- Includes flexible current clamps for up to 3000 A measurement
- Compliance with IEC61000 and EN50160 industry standards
- Includes
- 1 x Power Analyzer PCE-PA 8500
- 4 x Flexible Current Clamps
- 5 x Test Leads (2 m)
- 5 x Crocodile Clips
- 1 x Software CD (also available for download)
- 1 x Power Supply (12V DC / 2A)
- 1 x Power Cable
- 1 x User Manual
