Description
PCE Instruments Multifunction Conductivity Meter (PCE-PHD-1-KIT1) is a portable device designed to measure essential water quality parameters, including pH, redox, conductivity, salinity, oxygen levels, and temperature. Its user-friendly interface and durable design make it ideal for laboratory and field applications.
Equipped with automatic temperature compensation and data logging, this meter ensures precise readings even with fluctuating temperatures. Measurements are stored directly as Excel files on an SD card, with real-time data transmission possible via the RS-232 interface.
- Specifications and Dimensions
- pH Measurement Range: 0.00 to 14.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: ±0.02 pH +2 digits
- Redox Measurement Range: -1999 to 1999 mV
- Redox Resolution: 1 mV
- Redox Accuracy: ±0.5% + 2 digits
- Conductivity Measurement Range: 0 to 200 μS/cm; 0.2 to 2.0 mS/cm; 2 to 20.0 mS/cm; 20 to 200 mS/cm
- Conductivity Resolution: 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm
- Conductivity Accuracy: ±2% of the measurement range + 1 digit
- Total Dissolved Solids (TDS) Measurement Range: 0 to 132000 ppm
- Salt Content Measurement Range: 0 to 20 mg/l (in water); 0 to 100% (in air)
- Temperature Measurement Range: 0 to 60 °C (32 to 140 °F)
- Temperature Resolution: 0.1 °C
- Temperature Accuracy: ±0.8 °C
- Measurement Rate: Adjustable from 1 second to 8 hours 59 minutes 59 seconds
- Display: LCD 52 x 38 mm (2 x 1.5 inches)
- Memory: SD card slot supporting 1 to 16 GB
- Interface: RS-232
- Power Supply: 6 x 1.5 V AA batteries or optional 9 V power adapter
- Operating Conditions: 0 to +50 °C (32 to 122 °F); <85>
- Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.8 inches)
- Weight: 490 g (1.1 lbs)
- Key Features and Benefits
- Real-time data logging with adjustable measurement rate
- Data stored directly as Excel files on SD card (no software required)
- RS-232 interface for online data transmission
- High precision measurements with automatic calibration
- Manual or automatic temperature compensation
- Robust housing suitable for both laboratory and on-site measurements
- Includes pH and conductivity electrodes; additional probes available

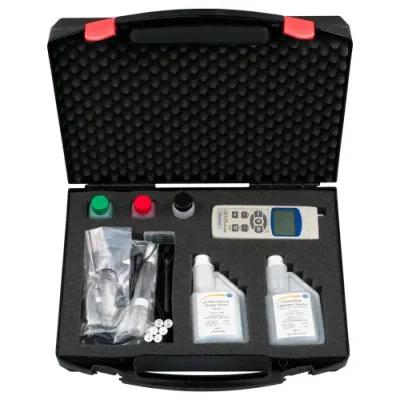

- Includes
- 1 x PCE-PHD-1-KIT1 multifunction conductivity meter
- 1 x oxygen probe OXPB-11
- 1 x pH electrode PE-03
- 1 x conductivity electrode CDPB-03
- 1 x temperature sensor TP-07
- 1 x SD memory card 2 GB
- 1 x storage solution PCE-SSO-250 (250 ml)
- 1 x calibration solution PCE-PH4-50 (50 ml)
- 1 x calibration solution PCE-PH7-50 (50 ml)
- 1 x electrolyte solution OXEL-03 for oxygen probe (50 ml)
- 1 x conductance solution PCE-CDS-1413-250 (250 ml)
- 6 x batteries
- 1 x user manual
- 1 x carrying case with pre-punched inner foam
