Description

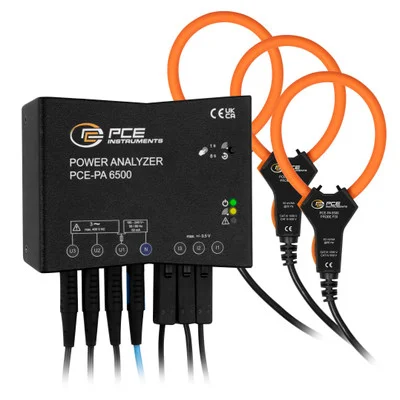

PCE Instruments Power Indicator (PCE-PA 6500 F50) is a high-performance energy monitoring device designed for measuring active, apparent, and reactive power. Using Rogowski coils and folding current transformers, it provides real-time power analysis, enabling businesses to optimize their energy consumption efficiently.
Additionally, the device includes 32GB internal storage, allowing CSV file export and offline data recording, making it perfect for environments where internet access is limited.
- Specifications and Dimensions
- AC Voltage Measurement Range: 40 … 400 V
- Resolution: 0.01 V / Accuracy: ±1% of Rd.
- AC Current Measurement Range: 2 … 1250 A
- Active Power Measurement Range: 80 W … 500 kW
- Reactive Power Measurement Range: 80 VAR … 500 kVAR
- Apparent Power Measurement Range: 80 VA … 500 kVA
- Power Factor Measurement Range: 0 … 1
- Measuring Rate: 26000 Hz
- Storage Capacity: 32GB Internal Memory
- Storage Interval: Adjustable from 1 sec to 60 min
- Connectivity: Wi-Fi and BLE App Support
- Protection Class: IP40
- Power Supply: 100 … 240 V 50/60 Hz (+/- 10%)
- Weight: 202 g
- Operating Conditions: -5 … 40°C, 0 … 80% RH
- Dimensions: 123 x 96 x 36 mm
- Key Features and Benefits
- Measures active, apparent, and reactive power
- Wi-Fi enabled for real-time power monitoring
- 32GB internal storage for offline recording and CSV export
- Compatible with Rogowski coils and current transformers
- Provides accurate energy tracking and efficiency optimization
- Remote access and monitoring via app
- Quick and easy integration into power distribution systems
- No additional mains connection required
- Includes
- 1 x PCE-PA 6500 F50 Power Indicator
- 4 x Test Leads (Blue, Brown, Black, Grey) 2m
- 3 x Rogowski Coils
- 3 x Magnetic Measuring Adaptors (6.6 mm)
- 1 x Blue Crocodile Clip
- 1 x User Manual
- 1 x Service Bag
