Description

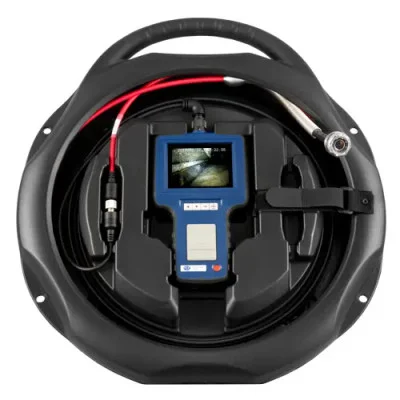

PCE Instruments Industrial Borescope (PCE-VE 390N) is a powerful diagnostic tool designed for non-destructive inspections in industrial settings. With its durable waterproof camera cable, this borescope is perfect for analyzing plumbing systems, HVAC ducts, and structural components in hard-to-reach areas.
Equipped with an advanced CMOS image sensor, bright LED illumination, and a 3.5-inch LCD display, this industrial borescope delivers sharp images and real-time video feedback. The 10-meter semi-rigid cable offers flexibility while maintaining stability during inspections.
- Specifications and Dimensions
- Cable Diameter: 28 mm / 1.11 in
- Cable Length: 10 m / 32.8 ft
- Depth of Field: 10 mm to infinity
- Field of View: 150.8°
- Bending Radius: 90 mm / 3.54 in
- Illumination: 8 LED lights
- Image Sensor: CMOS (640 x 480 resolution)
- Frame Rate: 30 frames per second (fps)
- Display: 88.9 mm / 3.5 in TFT LCD monitor
- Interface: Mini USB 1.1 / AV out
- Storage: 8 GB SD memory card (expandable to 32 GB)
- Compression Format: MPEG 4
- Picture Format: JPEG (640 x 480)
- Video Output Format: NTSC / PAL
- Video Format: ASF (320 x 240)
- Operating Temperature: -10 … 60°C / 14 … 140°F
- Power Supply: Rechargeable 3.7V lithium-ion battery
- Device Dimensions: 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
- Weight (Including Case): 9.98 kg / 22 lbs
- Protection Type (Camera): IP 68 – Dust-tight and waterproof up to 1.5 m / 4.92 ft
- Key Features and Benefits
- 10 m waterproof push-pull cable for deep inspections
- High-resolution CMOS camera with bright LED lighting
- Real-time video and image capture
- 3.5-inch LCD display for live monitoring
- Easy data storage on an 8GB SD memory card
- Ideal for industrial and mechanical inspections
- Durable carrying case for secure transport
