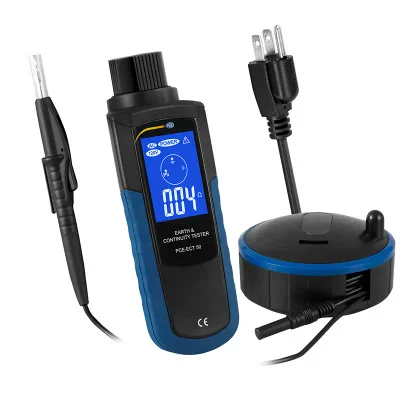

PCE Instruments Earth and Continuity Tester (PCE-ECT 50)

Description

PCE Instruments Earth and Continuity Tester (PCE-ECT 50) is a reliable measuring device designed for accurate earth resistance and continuity testing. It features a two-color backlit LCD for easy readability and operates within a measurement range of 0 to 2000 Ω.

With an operating voltage of 230V and a robust installation category III rating, this tester is built for professional environments. Its lightweight design, combined with an approximate 7-meter-long test lead, allows for flexible and efficient usage.

• Specifications and Dimensions
  • Measuring Principle: Continuity testing / Earth resistance measurement
  • Measurement Range: 0 … 2000 Ω
  • Display: Two-color backlit LCD
  • Accuracy: ±(3 % + 3 digits) at 0 … 200 Ω, at 23 °C ±5 °C
  • Operating Voltage: 230 V (Ph/N) -10 / +6 %
  • Operating Frequency: 50 / 60 Hz
  • Standards: IEC 611010-1 EN 61557-4, class II, IP40, IK06
  • Installation Category: III
  • Operating Temperature: -15 … +45 °C
  • Storage Temperature: -25 … +70 °C
  • Dimensions: 72 x 210 x 50 mm (W x L x H)
  • Length of Test Lead: Approx. 7 m
  • Weight: 340 g



• Key Features and Benefits
  • Lightweight and portable design for easy handling
  • Extended test lead length for flexible operation
  • Designed for professional use in electrical and industrial environments
