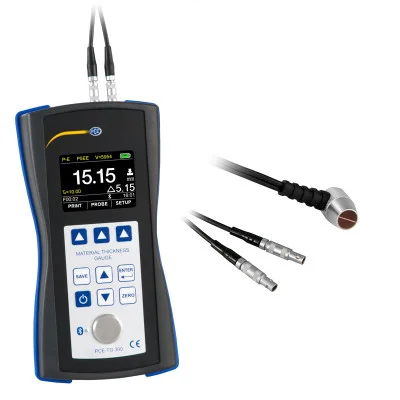

PCE Instruments Digital Material Thickness Gauge with Bluetooth (PCE-TG 300-NO5)

Description

PCE Instruments Digital Material Thickness Gauge (PCE-TG 300-NO5) is a high-precision ultrasonic device designed for measuring the thickness of various materials. With a large measuring range of up to 600mm, this gauge supports pulse-echo and echo-echo modes for testing metals, plastics, ceramics, and more.

Featuring Bluetooth printing and USB connectivity, it enables efficient data transfer and documentation. Its robust memory system allows the storage of up to 100 measurement data groups, making it an essential tool for industrial inspections and quality control.

• Specifications and Dimensions
  • Measuring Range (P-E Mode): 0.65 – 600mm (Steel)
  • Measuring Range (E-E Mode): 2.50 – 100mm
  • Sensor Frequency: 5 MHz
  • Accuracy: ±0.04mm (<10mm>10mm)
  • Resolution: 0.1mm / 0.01mm / 0.001mm (Adjustable)
  • Display: 320 x 240 pixels TFT LCD color display
  • Data Transfer: Bluetooth printing / USB 2.0
  • Memory: 100 data groups with 100 data sets each
  • Power Supply: 4 x AA batteries (1.5V)
  • Operating Conditions: 0°C – 50°C (≤80% RH non-condensing)
  • Dimensions: 185 x 97 x 40mm
  • Weight: 375g



• Key Features and Benefits
  • Measures thickness of metals, plastics, ceramics, and glass
  • Pulse-echo and echo-echo modes for enhanced measurement accuracy
  • Bluetooth printing and USB data transfer for efficient reporting
  • Calibration options: sound velocity, zero, and two-point
  • Non-volatile memory stores up to 100 data groups
  • Detects voids and defects in materials using ultrasonic technology
  • Durable and lightweight design for industrial and field applications



• Includes
  • 1 x Material Thickness Gauge PCE-TG 300-NO5
  • 1 x Sensor PCE-TG-NO5
  • 1 x 100ml Coupling Gel
  • 1 x Transport Case
  • 4 x AA Batteries
  • 1 x User Manual
