Description

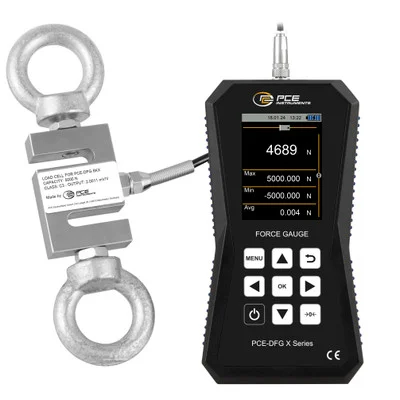

PCE Instruments Digital Force Gauge (PCE-DFG 5K X) is designed for precise measurement of tensile and compressive forces up to 5 kN. Ideal for laboratory and industrial testing, this device features an external load cell, ensuring accurate results in various testing environments.
The force gauge comes with a 32GB internal memory that can store 30 million measuring points, making it suitable for extensive data collection. The graphical LCD provides real-time visualization of measurements, and the IP67-rated load cell ensures durability in harsh conditions.
- Specifications and Dimensions
- Measuring range: 0 … 5 kN
- Resolution: 1 N
- Accuracy: ±0.05 % FS
- Display: 2.8-inch illuminated LCD
- Adjustable measurement rate: 1 … 7,200 Hz
- Memory capacity: 32GB (stores 30 million measurement points)
- Power supply: USB 5V DC, 500 mA
- Operating time: 13 hours
- Protection class: Device (IP52), Load Cell (IP67)
- Weight: 255 g
- Dimensions (L x W x H): 165 x 85 x 32 mm
- Key Features and Benefits
- Accurately measures tensile and compressive forces up to 5 kN
- USB-C interface for secure and fast data transfer
- Graphical LCD for real-time measurement visualization
- Customizable alarm modes: Inside, Outside, Crack, Switch-off
- Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
- Interchangeable measuring cells for enhanced versatility
- Calibration reminder for maintaining precision
