Description

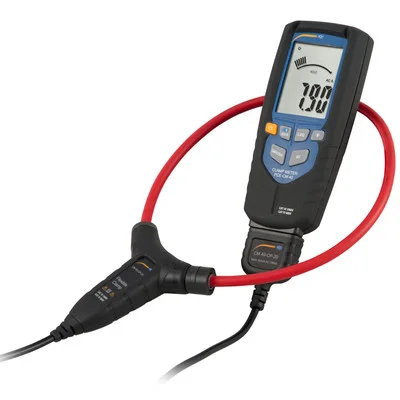

PCE Instruments Digital Clamp Meter (PCE-CM 40) is a professional tool designed for precise AC current measurement up to 3000A. Equipped with a flexible Rogowski coil, this meter allows for non-contact current testing, making it ideal for use in electrical installations, industrial systems, and machinery. The illuminated LCD display ensures clear readings even in dim environments.
The clamp meter with Rogowski coil can accurately measure starting currents and frequencies from 50 to 400 Hz. The device supports Bluetooth data transfer, enabling users to store and retrieve measured values efficiently.
- Specifications and Dimensions
- AC Current Measurement: 30A, 300A, 3000A
- Resolution: 0.01A (30A range), 0.1A (300A range), 1A (3000A range)
- Accuracy: ±(3% of measured value + 5 digits)
- Loop Diameter: 170 mm (6.7 in)
- Frequency Measurement: 50 – 400 Hz
- Display: 3000-digit LCD with backlight
- Data Storage: Bluetooth-enabled
- Automatic Shutdown: 15 minutes
- Operating Conditions: 5 to 40°C (41 to 104°F), 80% RH
- Storage Conditions: -20 to 60°C (-4 to 140°F)
- Overvoltage Protection: CAT IV 600V, CAT III 1000V
- Power Supply: 2 x 1.5V AAA batteries
- Device Dimensions: Compact and lightweight for portable use
- Key Features and Benefits
- Measures AC current up to 3000A with flexible Rogowski coil
- Inrush current function for analyzing starting loads
- Integrated frequency measurement from 50 to 400 Hz
- Bright LCD display for enhanced visibility
- Bluetooth-enabled data storage for convenient tracking
- Designed for quick and easy handling in industrial settings
- Includes
- 1 x Clamp Meter PCE-CM 40
- 1 x Display Device
- 1 x Rogowski Coil
- 2 x 1.5V AAA Batteries
- 1 x User Manual
