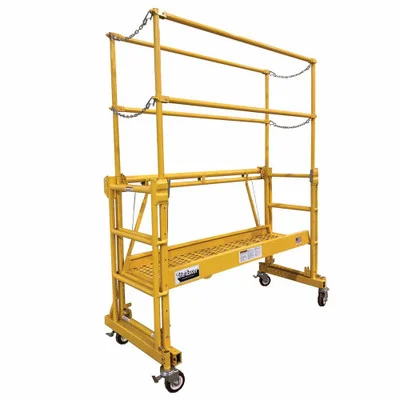

Paragon Pro 6‘x19″ Deck 7‘ Tele-Tower Adjust. Work Platform (1101-610)

Description

The Paragon Pro 6’x19″ Deck 7′ Tele-Tower Adjust. Work Platform (1101-610) is a versatile and compact mobile scaffold, expertly engineered to provide a stable elevated workspace in tight or low-clearance environments. Designed and manufactured in the USA, this all-steel unit is a robust and efficient alternative to traditional, bulky scaffolding. Its unique hand-crank winch and cable system allow for swift, one-person deck height adjustments from 2 to 7 feet, offering a working height of up to 13 feet. The platform’s slim 32-inch width and four heavy-duty casters ensure easy maneuverability, allowing it to pass through standard doorways. Assembly is simple and requires no tools, with integral outriggers and included safety features like guardrails and chains ensuring compliance with U.S. ANSI and OSHA standards.

KEY FEATURES AND BENEFITS:

• Compact and Mobile: The narrow 32-inch width and four heavy-duty casters allow the platform to be easily rolled through standard doorways and navigated in confined spaces, saving time and effort.
• Quick Height Adjustment: The hand-crank winch and cable system enable one person to rapidly adjust the deck height from 2 to 7 feet, providing a customizable work level for various tasks.
• Tool-Free Assembly: This work platform can be assembled by a single person in as little as five minutes without the need for any tools, allowing you to get to work quickly.
• Built for Safety: The platform is constructed with integral outriggers for stability, and includes four guardrails, four safety chains, and six braces to meet U.S. ANSI and OSHA safety standards.
• High Load Capacity: The all-steel construction with aircraft-grade steel cable drive provides a substantial load capacity of 1000 lbs, accommodating workers and their equipment with confidence.

SPECIFICATIONS:

• Model Number: 1101-610
• Deck Dimensions: 6 feet long x 19 inches wide
• Adjustable Deck Height Range: 2 feet (minimum) to 7 feet (maximum)
• Working Height: Up to 13 feet
• Load Capacity: 1000 lbs
• Overall Dimensions (Assembled): 80 inches (length) x 32 inches (width) x 92 inches (height)
• Weight: 315 lbs
• Color: Yellow

HOW TO USE:

1. Assembly: Lay the main frame on a flat surface. Insert the outriggers and secure them with the locking pins. Position the deck onto the frame and attach the cable from the hand-crank winch to the deck’s attachment point.
2. Positioning: With the deck at its lowest setting, extend the integral outriggers for maximum stability. Roll the unit into position at your desired work location. The heavy-duty casters allow for easy maneuvering.
3. Adjusting Height: To raise the deck, turn the hand-crank winch clockwise. The cable will smoothly lift the platform to the desired height. Secure the deck by inserting the locking pins into the pre-drilled holes at 6-inch intervals.
4. Securing: Once the deck is at the required height, install the four guardrails and four safety chains around the perimeter of the platform to create a secure work area.
5. Working: You can now safely climb onto the platform to perform your task. Always adhere to the recommended weight capacity and safety guidelines. To lower the deck, simply release the locking pins and turn the hand-crank counter-clockwise.

BENEFITS OF USING PARAGON PRO 6’X19″ DECK 7′ TELE-TOWER ADJUST. WORK PLATFORM (1101-610):

• Increased Efficiency: The ability to quickly and easily adjust deck height and move the platform from one location to another reduces downtime on the job site.
• Enhanced Safety: Meeting strict safety standards and including multiple safety components like guardrails and chains provides a secure and stable work environment, reducing the risk of accidents.
• Versatile Application: This platform is suitable for a wide range of tasks, from painting and electrical work to maintenance and installation, particularly in spaces where large scaffolding is impractical.
• Long-Term Reliability: Constructed with all-steel components and a limited lifetime warranty, this product is built to last and provides a reliable solution for years of professional use.
• Cost-Effective: As a compact and reusable alternative to renting or setting up complex scaffolding, this platform offers a more economical solution for many projects.

FEATURES:

• Single-person assembly requiring no tools.
• Mobile design with four 5-inch heavy-duty casters.
• Integrated hand-crank winch and aircraft-grade steel cable drive system.
• All-steel construction for high strength and durability.
• Deck height adjustments in 6-inch increments.
• Integral extendable and retractable outriggers for stability.
• Designed to fit through a standard 32-inch wide doorway.
• Meets applicable U.S. ANSI and OSHA standards.
