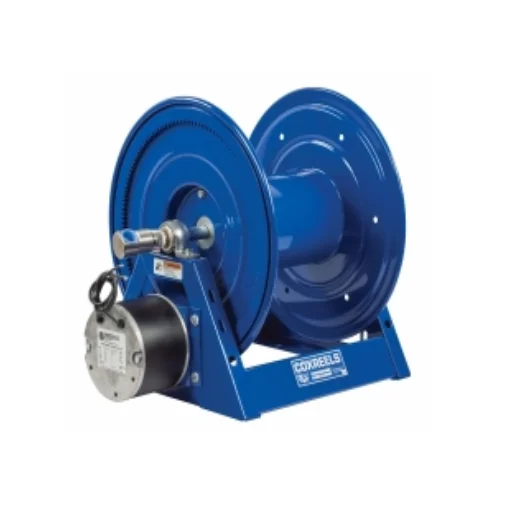

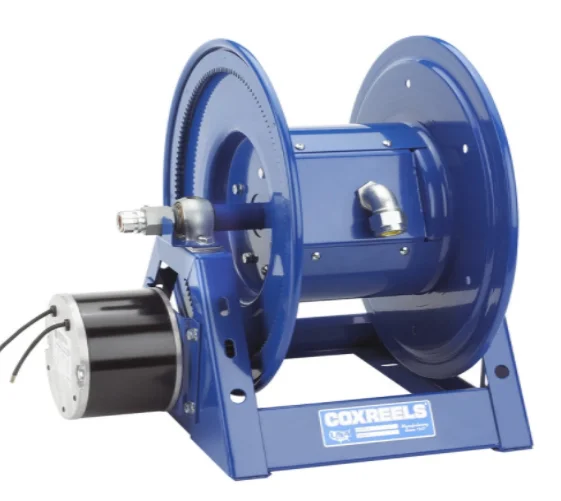

Motor Driven Power Cord Reel – Less Cord – 1125PCL Series

Description

12V DC 1/3 HP Reversible – 45 AMP – 10 GA. / 200′ – 12 GA. / 250′

COXREELS® 1125PCL Series professional-grade motorized cord reels feature the industry-preferred design including a drum-located, easy to access slip ring assembly for simple routine maintenance and a sturdy all-welded “A” frame built to efficiently handle the most demanding of tasks. The unique permanently lubricated and self-aligning pillow block bearings at each end of the drum allow smooth rotation and are specifically designed for rough, heavy-duty applications. These innovative models handle long length of 12/3 gauge or 10/3 gauge SO type power cord.

SWIVEL

• Drum-located slip ring assembly with easy to access cover for simple routine maintenance.
• Available with 30 Amps or 45 Amps, 600 Volt rated slip ring assembly (see chart).

DESIGN & STRUCTURE

• All welded steel “A” frame construction to strengthen the reel structure
• Narrow width for convenient installation in restricted spaces

RETRACT

• Reliable direct gear drive on motor-driven models – No chain.
• Solid steel direct hand crank with smooth round handle.
• See Motor Options Chart

SIGNATURE FEATURES

• Professional grade heavy-duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer’s limited warranty.
• Made in the U.S.A. – Sold & Supported Worldwide.
• SLIP RING ASSEMBLY – Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
• CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
• “A” FRAME – Sturdy one-piece, all CNC robotically welded 12 gauge steel “A” frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
• PERMANENTLY LUBRICATED BEARINGS – Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
• CABLE KEEPER – Integrated anti-rotation cable keeper prevents the 5-foot lead cable from whipping or twisting.
• OTHER FEATURES INCLUDE – long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, and reliable direct gear drive providing quiet & smooth rotation – NO CHAIN. Motor options available in air, electric, and hydraulic.
