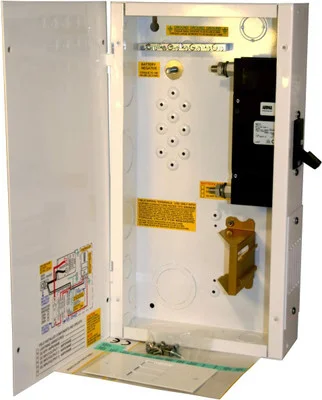

Mini DC Disconnect Power Center with 250 Amp Breaker
White aluminum chassis with 250A/125VDC breaker. 10″ X 5″ X 18″ The MNDC250 comes with a din rail for 5 additional DC breakers for DC loads, charge controller disconnect, battery status monitor feed etc. included is a ground bus, 5/16″ bonding battery minus stud. Mounting holes for a 500 amp shunt are built in. The Mini-DC was designed to take into account many different types of renewable energy installations. The installation instructions will describe and show some of the more common possibilities.
Features:
- Aluminum chassis. (no rust in the tropics or around salt water)
- Hinged door for easy access to electrical circuits
- Inverter breaker included (125, 175 or 250 amp)
- Din rail for DC circuits such as PV in, Chg Cntrl out, DC-GFP, DC loads, PV combiner
- Ground bus bar with 14 poles
- Six mounting spots for 500 amp, 50mV shunt
- Mounting spot for insulated bus bar (for PV negative connection point)
- Knock outs for inverter and battery cables, charge control mounting, DC & PV in & out
- 5/16 diameter stud for battery negative tie point
