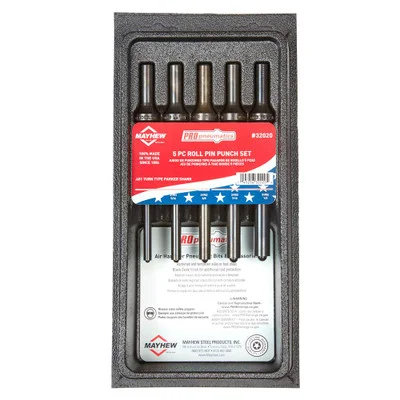

Mayhew 5-Pieces Roll Pin Punch Pneumatic Set (32020)

Description

The Mayhew 5-Pieces Roll Pin Punch Pneumatic Set (32020) is a specialized collection of tools designed for the precise removal and installation of roll pins, spring pins, and split pins. Crafted with professional mechanics and industrial users in mind, this set provides the necessary implements for efficient and reliable pin work when used with a pneumatic hammer. Each punch is manufactured from high-quality, heat-treated tool steel, ensuring durability and consistent performance in demanding environments. The set’s design focuses on applying equal pressure to the end of a pin, facilitating its straight and controlled movement through a hole without causing damage to the surrounding material or the pin itself. With its dedicated purpose and robust construction, the Mayhew 32020 set is an indispensable addition to any toolbox requiring precision fastening and removal capabilities. The included punches cover common pin sizes, making it versatile for various applications from automotive repair to machinery maintenance.

KEY FEATURES AND BENEFITS:

• Optimized for Pneumatic Use: Features standard .401 turn-type Parker shanks, ensuring compatibility and efficient power transfer with pneumatic hammers.
• High-Strength Construction: Each punch is made from fully hardened and tempered shock-resistant tool steel, designed to withstand repeated impacts without deformation.
• Corrosion Protection: A black oxide finish provides enhanced resistance against rust and corrosion, extending tool life.
• Accurate Pin Handling: Engineered to apply even pressure across the pin face, driving it straight through holes and preventing bending or jamming.
• Comprehensive Size Range: Includes five essential sizes (1/4″, 5/16″, 3/8″, 7/16″, 1/2″) to address a wide array of roll pin dimensions.
• Organized Storage: Comes conveniently arranged in a tray, allowing for easy access and organization of the tools.

SPECIFICATIONS:

• Weight: 1.45 lbs.
• Length (Set): 11.5″
• Width (Set): 5.75″
• Height (Set): 1.75″
• Shank Body Size: 0.401″
• Country of Origin: Made in the USA
• Included in Set:
• Pneumatic Roll Pin Punch 1/4″ x 6″ (Item 31950)
• Pneumatic Roll Pin Punch 5/16″ x 6″ (Item 31951)
• Pneumatic Roll Pin Punch 3/8″ x 6″ (Item 31952)
• Pneumatic Roll Pin Punch 7/16″ x 6″ (Item 31953)
• Pneumatic Roll Pin Punch 1/2″ x 6″ (Item 31954)
• Anti-slip storage tray

HOW TO USE:

• Select the Correct Punch: Identify the roll pin to be removed or installed and choose the punch from the set that matches the pin’s diameter. Using the correct size ensures even force distribution and prevents damage to the pin or workpiece.
• Insert Punch into Pneumatic Hammer: Securely insert the .401 Parker shank of the selected punch into the chuck of your pneumatic hammer. Ensure it is fully seated and locked in place according to your tool’s instructions.
• Position the Punch: For removal, place the tip of the punch squarely on the center of the roll pin. For installation, align the pin within its hole and then place the punch tip on the pin’s end.
• Engage Pneumatic Hammer: Activate your pneumatic hammer, applying steady and controlled pressure. The rapid impacts of the hammer, transferred through the punch, will drive the pin.
• Monitor Progress: Continuously observe the pin’s movement. For removal, continue until the pin is fully pushed out. For installation, stop once the pin is flush or seated to the desired depth.
• Clean Up: After use, remove the punch from the pneumatic hammer, clean any debris, and return the punch to its tray for storage.

BENEFITS OF USING MAYHEW 5-PIECES ROLL PIN PUNCH PNEUMATIC SET (32020):

• Increased Efficiency: Accelerates the process of removing and installing stubborn roll pins compared to manual methods, saving time and effort.
• Reduced User Fatigue: The pneumatic operation minimizes the physical exertion required, making repetitive tasks more manageable.
• Enhanced Precision: Designed to deliver force directly and evenly, promoting straight pin movement and reducing the risk of bending pins or damaging surrounding components.
• Professional-Grade Results: Ensures clean and reliable work, crucial for maintaining the integrity of machinery and assemblies.
• Longevity of Tools: Constructed from high-quality materials with a protective finish, offering a long service life even under frequent use.
• Versatility in Applications: Suitable for a broad range of tasks in automotive, industrial, and machinery repair where roll, spring, or split pins are utilized.

FEATURES:

• Specialized tools for pin driving and extraction.
• Individual punch lengths of 6 inches.
• Precision-machined tips for accurate engagement.
• Designed for compatibility with industry-standard .401 air hammers.
• Completely manufactured in the United States.
• Includes five distinct punch diameters.
• Packaged in a dedicated storage tray.
