Description

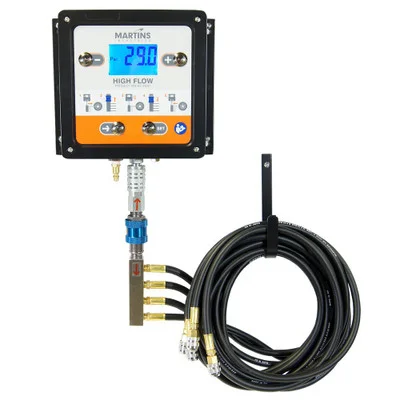

Martins Industries Flatematic 4 Way Automatic Tire Inflator with 4 Outlets (MW-60-4WAY) allows you to inflate or deflate up to 4 tires simultaneously and automatically up to 145 psi. This wall-mounted unit is equipped with 4 air hoses of 8’/2.4 m and can inflate 4 x 11R22.5 tires from 0 to 100 psi in only 4 minutes and 12 seconds.
The Flatematic 4 Way starts inflation or deflation automatically once connected to the tire valves, ensuring precise pressure for all tires. It features 4 measurement units (psi, bar, kPa, kg/cm2), an overpressure system (OPS), and an LCD screen with backlight for easy reading.
- Specifications and Dimensions
- Air pressure – max. outlet (psi): 145
- Air pressure – max. inlet (psi): 150
- Reading accuracy (psi): 0.29
- Airflow – max. (l/min): 3600
- Airflow – max. (CFM): 128
- Hose quantity: 4
- Hose length (inches): 96
- Chuck type: Closed
- Certifications: CE
- Calibration certified: Yes
- Autocalibration: Yes, on every unit start
- Degree of protection: IP66
- Supply voltage: 110
- Temperature range: -10 °C ~ 50 °C / 14 °F ~ 122°F
- Product dimensions – LxWxH (inches): 9 x 10 1/2 x 3 1/2
- Net weight (lb): 14
- Package dimensions – LxWxH (inches): 12 x 12 x 9
- Gross weight (lb): 17
- Warranty: 1 year warranty
- Key Features and Benefits
- Inflates or deflates up to 4 tires simultaneously
- Wall-mounted unit with 4 air hoses for easy reach
- Inflates 4 x 11R22.5 tires from 0 to 100 psi in 4 minutes 12 seconds
- Loud audible signal indicates desired pressure reached
- 4 measurement units and overpressure system (OPS)
- LCD screen with backlight for easy reading
- Includes
- 4 air hoses of 8’ with 1/4” NPT closed chucks
- Quick coupling 1/4” industrial
- Air hose support hook
- M6x38 screws (5x)
- User manual
