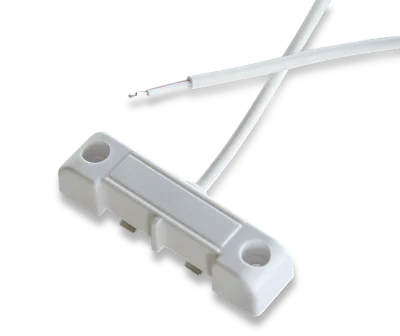

Level Sense 6‘ DC Floor Water Leak Sensor (LS-LEAK-2M)

Description

The Level Sense 6′ DC Floor Water Leak Sensor (LS-LEAK-2M) offers a straightforward and dependable solution for detecting water leaks in a variety of residential and commercial settings. This sensor is designed to provide early warnings of moisture, helping to prevent potentially significant water damage to your property and belongings. Its simple two-wire connection and compatibility with various systems make it an accessible choice for both professional installations and DIY projects.

KEY FEATURES AND BENEFITS:

• Equipped with a 6-foot cable, allowing for flexible placement in areas prone to leaks such as utility rooms, near water heaters, and under sinks.
• Detects water by changing from an open circuit to a resistive one (approximately 1.4MΩ, depending on water conductivity), triggering alarms or notifications.
• Operates on a low working voltage of 5Vdc to 12Vdc, and is compatible with a maximum voltage of 24Vdc.
• Compact size with a white ABS housing, ensuring discreet installation.
• Compatible with Level Sense devices, home security systems, and electronics platforms like Arduino and Raspberry Pi.

SPECIFICATIONS:

• Size: L64 * W15.6 * H12.7 mm
• Housing Material: ABS, white
• Working Voltage: 5Vdc – 12Vdc
• Maximum Voltage: 24Vdc
• Maximum Working Current: 0.5 Amp
• Operating Temperature: 14°F to 150°F (-10°C to 65°C)
• Cable Length: 6 Feet
• Wiring: Red (Positive), White (Negative/Ground)

HOW TO USE:

1. Placement: Position the Level Sense water leak sensor on a flat surface in an area where water leaks are a potential risk (e.g., under a sink, near a water heater, in a basement). Ensure the two metal pads on the bottom of the sensor are in contact with the surface.
2. Wiring: Connect the red wire to a positive voltage input (within the 5Vdc to 12Vdc range) on your monitoring device (e.g., alarm panel, Arduino, Raspberry Pi).
3. Wiring: Connect the white wire to the ground or negative terminal of the same monitoring device.
4. Integration (Optional): If integrating with a home security system or Level Sense device, follow the specific instructions provided by the manufacturer for connecting external sensors.
5. Monitoring: Configure your connected device to monitor the electrical state of the sensor. When water bridges the metal pads, the resistance will change, signaling a leak. For digital inputs, use a pull-up or pull-down resistor in your circuit. For analog inputs, monitor the voltage change resulting from the change in resistance.

BENEFITS OF USING THE LEVEL SENSE 6′ DC FLOOR WATER LEAK SENSOR (LS-LEAK-2M):

• Proactively safeguards your property against water damage by providing early detection of leaks, helping to prevent damage to floors, walls, and belongings.
• Reduces repair costs and prevents the growth of mold and mildew due to water exposure.
• Compatible with various systems, offering flexibility for monitoring leaks through professional setups or DIY projects.
• The 6-foot cable ensures convenient placement in hard-to-reach or critical areas.
• Simple and effective monitoring solution for peace of mind regarding potential water-related incidents.

FEATURES:

• Dual Pad Detection: Senses water by detecting conductivity between two distinct metal contact points.
• Open/Closed Circuit Behavior: Acts as an open circuit in dry conditions and transitions to a resistive state when water is present.
• Extended Reach: Comes with a 6-foot cable for versatile positioning in various locations.
• Simple Two-Wire Connection: Easy to integrate with existing systems using just two wires.
• Wide Compatibility: Suitable for use with dedicated alarm systems, Level Sense products, and DIY electronics platforms like Arduino and Raspberry Pi.
• Compact and Discreet: Features a small form factor and a neutral white housing for unobtrusive placement.
• Broad Temperature Tolerance: Operates reliably within a temperature range of 14°F to 150°F.
