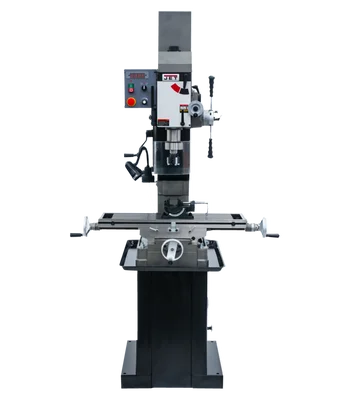

Jet Variable Speed Square Column Mill/Drill w/ Powerfeeds (351163)

Description

The Jet Variable Speed Square Column Mill/Drill w/ Powerfeeds (351163) is a heavy-duty machine built for tackling demanding drilling and milling applications.

KEY FEATURES AND BENEFITS:

• Variable Speed Geared Head: Offers a wide range of speeds for optimal performance with various materials and drill/mill bit sizes.
• Square Column with Dovetail Ways: Provides exceptional rigidity and stability for accurate drilling and milling operations.
• X-Axis Powerfeed: Ensures precise control and consistent feed rates during milling tasks.
• Newall DP500 2-Axis DRO (Digital ReadOut): Delivers high-precision positioning of the table and quill for improved accuracy.
• R8 Spindle Taper: Compatible with a wide variety of drilling and milling tooling for versatility.

SPECIFICATIONS:

• Drilling Capacity: 1-1/2 in.
• Face Mill Capacity: 4 in.
• End Mill Capacity: 3/4 in.
• Swing: 19-11/16 in.
• Spindle Speeds: Variable (50-2500 RPM)
• Table Longitudinal Travel: 20-1/2 in.
• Motor: 1-1/2 HP, 115/230V, 1Ph
• Weight: 827 lbs.

HOW TO USE:

1. Setup: Secure your workpiece to the milling table using clamps or a vise. Ensure the machine is level and on a stable surface.
2. Speed Selection: Choose the appropriate spindle speed based on the material and drill/mill bit size using the variable speed control.
3. Drilling: For drilling operations, lower the quill using the handwheel or power feed (if engaged) and engage the drill feed lever.
4. Milling: For milling tasks, install the desired milling cutter in the R8 spindle. Lower the quill to the appropriate depth and engage the power feed (if using) or utilize the handwheel for manual control. Move the table along the X and/or Y-axis to achieve the desired milled profile.
5. Safety: Always wear safety glasses, ear protection, and appropriate gloves when operating the mill drill. Ensure all guards are in place before starting the machine.

BENEFITS OF USING Jet Variable Speed Square Column Mill/Drill w/ Powerfeeds (351163):

• Precision and Accuracy: The rigid construction, variable speed control, and digital readout ensure precise drilling and milling results.
• Versatility: Handles a wide range of drilling and milling tasks with its variable speed, R8 spindle taper, and large table travel.
• Power and Control: The 1.5 HP motor delivers ample power for demanding applications, while the X-axis powerfeed and variable speed control provide exceptional control.
• Durability: Built for long-lasting performance in workshops and production environments.

FEATURES:

• Heavy-duty design for rigidity and stability.
• Head tilts left and right 90° for angular drilling and milling.
• Spindle guard for operator safety.
• Work lamp for improved visibility.
• Calibrated fine downfeed for precise quill movement.
• Easy-to-read internal depth gauge.
• Forward/reverse switch for versatility.
