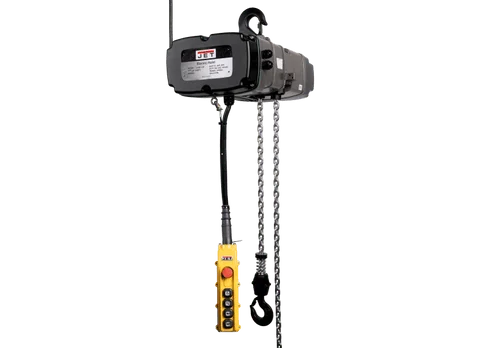

Jet TS300-015 460V 3-Ton Hoist w/ Trolley & 4BTN PEND (144011K)

Description

Jet TS300-015 460V 3-Ton Hoist w/ Trolley & 4BTN PEND (144011K) is a robust, reliable lifting solution designed for demanding industrial applications. Built with safety and efficiency in mind, this hoist offers a range of features to enhance productivity and operator protection.

KEY FEATURES AND BENEFITS:

• Two-Speed Operation: Quickly lift heavy loads and precisely position them with adjustable speeds.
• Safety First: Mechanical brake and overload protection prevent accidents and equipment damage.
• Durable Construction: IP55 TEFC motor and IP65 rated pendant withstand harsh environments.
• Efficient Performance: 5-pocket chain sprocket reduces vibration and extends chain life.
• Precise Control: Patented gear limit switch ensures accurate stopping.

SPECIFICATIONS:

• Capacity: 3 tons (6600 lbs)
• Lift: 15 feet
• Lifting Speed: 21/5 feet per minute
• Motor: 5 HP, 460V, 3-phase
• Weight: 562 lbs
• Dimensions: 37.008″ x 27.165″ x 23.622″
• Duty Cycle: H4 (40/20%)
• Max. Starts Per Hour: 240
• Max. On Time: 30 minutes per hour

HOW TO USE:

1. Inspect the hoist: Check for any damage or wear before use.
2. Attach the load: Securely hook the load to the hoist’s hook.
3. Turn on power: Connect the hoist to a power source.
4. Operate pendant: Use the up and down buttons to lift or lower the load.
5. Control speed: Adjust lifting speed using the speed selector.
6. Lower load: Gradually lower the load to the desired position.
7. Turn off power: Disconnect the hoist from the power source after use.

BENEFITS OF USING Jet TS300-015 460V 3-Ton Hoist w/ Trolley & 4BTN PEND (144011K):

• Increased productivity through efficient lifting.
• Enhanced safety with multiple safety features.
• Reduced downtime due to durable construction.
• Improved precision with two-speed operation.
• Extended equipment life with proper maintenance.

FEATURES:

• Two-speed motor
• Mechanical brake
• Overload protection
• IP55 TEFC motor
• IP65 rated pendant
• 5-pocket chain sprocket
• Patented gear limit switch
• Built-in heat protection
