Description

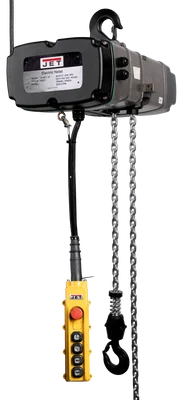

The Jet TS200-010 2-Ton Electric Hoist w/Trolley & 4BTN PEND (140239K) is a reliable and powerful tool designed to handle heavy loads with ease and precision in industrial settings. Built with safety and efficiency in mind, this hoist is equipped with advanced features to ensure optimal performance and operator protection.
KEY FEATURES AND BENEFITS:
- Enhanced Safety: Equipped with a two-in-one mechanical brake and overload protection, DC motor brake, and patented gear limit switch for maximum safety.
- Efficient Operation: Two-speed motor for precise lifting and lowering, offering lifting speeds of up to 33 feet per minute.
- Durable Construction: IP55 TEFC motor with Class F insulation, 5 pocket chain sprocket for reduced wear, and waterproof pendant control for long-lasting performance.
- Versatile Application: Available in capacities from 1/2 to 5 tons to suit various lifting needs.
SPECIFICATIONS:
- Capacity: 2 tons
- Duty Cycle: 40/20
- Lift: 10 feet
- Lifting Speed: 32/8 feet per minute
- Motor: 5HP, 230V, 3PH
- Weight: 446 pounds
- Headroom: 38-1/5 inches
- Overall Width: 20-7/8 inches
- Motor Current: 8.4/16.8 amps
HOW TO USE:
- Inspect the hoist: Check for any visible damage or wear and tear before use.
- Attach the load: Securely hook the load to the hoist using the appropriate lifting equipment.
- Turn on the power: Connect the hoist to a power source and turn on the power switch.
- Operate the pendant control: Use the up and down buttons on the pendant control to lift or lower the load.
- Monitor the load: Keep a close watch on the load during the lifting and lowering process.
- Lower the load: Gently lower the load to the desired position and turn off the power.
BENEFITS OF USING JET TS200-010 2-TON ELECTRIC HOIST W/TROLLEY & 4BTN PEND (140239K):
- Increased Productivity: Efficient lifting speeds and precise control enhance work efficiency.
- Improved Safety: Multiple safety features protect both operators and equipment.
- Reduced Downtime: Durable construction and reliable performance minimize equipment failures.
- Versatile Applications: Suitable for a wide range of industrial lifting tasks.
FEATURES:
- Two-in-one mechanical brake and overload protection
- Patented gear limit switch
- DC motor brake
- Two-speed motor
- IP55 TEFC motor with Class F insulation
- 5 pocket chain sprocket
- IP65 rated waterproof pendant control
- Built-in heat protection
- 10ft power supply cord
