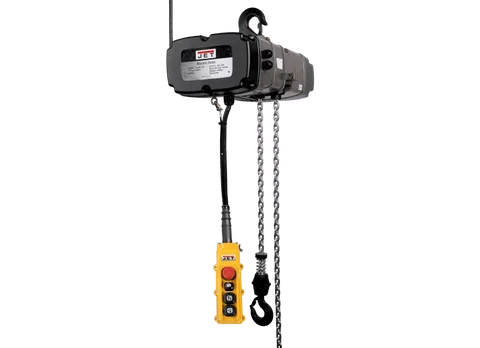

Jet TS100-090 3PH 1-Ton Electric Hoist w/ 90‘ Lift (140241)

Description

The Jet TS100-090 3PH 1-Ton Electric Hoist w/ 90′ Lift (140241) is a 1-ton electric hoist designed for heavy-duty industrial applications. Built with safety and efficiency in mind, this hoist is equipped with advanced features to ensure reliable performance and operator protection.

KEY FEATURES AND BENEFITS:

• Two-Speed Operation: Quickly lift heavy loads and precisely position them for placement.
• Mechanical Brake and Overload Protection: Prevent accidents and damage to the hoist.
• Patented Gear Limit Switch: Ensure accurate stopping and prolong hoist life.
• DC Motor Brake: Provides added safety in case of power failure.
• IP55 TEFC Motor: Suitable for harsh working environments.
• 5 Pocket Chain Sprocket: Reduces vibration and chain wear for smoother operation.
• Waterproof Pendant Control: Durable and easy to use.
• Built-In Heat Protection: Prevents overheating and extends hoist life.

SPECIFICATIONS:

• Capacity: 1 ton (2200 lbs)
• Lift Height: 90 ft
• Lifting Speed: 33 ft/min (high speed), 3 ft/min (low speed)
• Motor: 1-1/2 HP, 230V, 3 phase
• Duty Cycle: 40% / 20%
• Dimensions: Length 29.53 in, Width 32.28 in, Height 23.62 in
• Weight: 244 lbs

HOW TO USE:

1. Inspect the Hoist: Check for any damage before use.
2. Ensure Secure Attachment: Attach the hoist securely to a proper overhead support structure.
3. Connect Power Supply: Connect the power supply to a grounded outlet.
4. Test the Hoist: Lift a light load to check for proper operation.
5. Attach Load: Use a suitable lifting device to attach the load to the hoist hook.
6. Operate Pendant Control: Use the pendant control to raise or lower the load.
7. Monitor Operation: Keep an eye on the load and hoist during operation.
8. Lower Load: Carefully lower the load and detach it from the hook.
9. Disconnect Power Supply: Turn off the power and clean the hoist after use.

BENEFITS OF USING JET TS100-090 3PH 1-TON ELECTRIC HOIST W/ 90′ LIFT (140241):

• Increased Productivity: Efficient lifting and lowering speeds enhance work efficiency.
• Improved Safety: Multiple safety features protect both operators and equipment.
• Reduced Downtime: Durable construction and heat protection minimize equipment failures.
• Accurate Load Placement: Two-speed operation and gear limit switch ensure precise control.
• Cost-Effective Solution: Ideal for heavy-duty lifting tasks.

FEATURES:

• Reliable and durable construction
• Easy-to-use pendant control
• Versatile two-speed operation
• Advanced safety features
• Suitable for various industrial applications
