Description

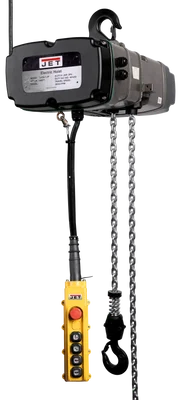

The Jet TS100-020 460V 1T Electric Hoist w/Trolley & 4BTN PEND (144006K) is a reliable and powerful lifting tool designed for industrial applications. Built with safety and efficiency in mind, this hoist offers a range of features to enhance productivity and protect operators.
KEY FEATURES AND BENEFITS:
- Safe operation: Equipped with a mechanical brake, overload protection, and emergency stop for enhanced safety.
- Durable construction: Features an IP55 rated motor and Class F insulation for long-lasting performance in harsh environments.
- Efficient lifting: Two-speed operation and smooth chain drive for precise and effective lifting.
- Easy to use: User-friendly pendant control for simple and intuitive operation.
- Versatile: Offers a 20 ft lift capacity and 1 ton load limit for various lifting tasks.
SPECIFICATIONS:
- Capacity: 2200 lbs (1 ton)
- Duty Cycle: 40% / 20%
- Lift: 20 ft
- Lifting Speed: 26 / 7 FPM
- Motor: 2HP, 460V, 3 Ph
- Weight: 266 lbs
- Headroom: 21 in
- Overall Width: 16-1/7 in
- Motor Current: 2.8 / 5.5 Amps
- Dimensions (LxWxH): 29.528 x 21.654 x 23.622 in
- Net Weight: 172 lbs
HOW TO USE:
- Inspect the hoist: Check for any visible damage to the chain, hook, or electrical components.
- Connect to power: Plug the power supply cord into a properly grounded outlet.
- Attach load: Securely hook the load to the hoist’s hook.
- Operate pendant control: Use the up and down buttons to lift or lower the load.
- Monitor load: Continuously observe the load during lifting and lowering.
- Lower load: Gradually lower the load to the desired position.
- Disconnect power: Unplug the power supply cord after use.
BENEFITS OF USING JET TS100-020 460V 1T ELECTRIC HOIST W/TROLLEY & 4BTN PEND (144006K):
- Increased productivity: Efficient lifting operations boost overall productivity.
- Improved safety: Multiple safety features enhance operational safety.
- Reduced labor costs: Automated lifting reduces the need for manual labor.
- Enhanced workplace efficiency: Reliable performance improves workflow and efficiency.
- Durable construction: Long-lasting use in demanding environments.
FEATURES:
- Mechanical brake: Adds safety by preventing accidental lowering.
- Overload protection: Prevents equipment damage due to excessive loads.
- Emergency stop button: Allows for quick response in case of emergencies.
- IP55 rated motor: Designed for reliable performance in harsh environments.
- Class F insulation: Enhances durability and heat resistance.
- Two-speed operation: Provides versatile lifting options.
- Smooth chain drive: Reduces wear and ensures reliable performance.
- User-friendly pendant control: Simplifies operation with easy-to-use controls.
- 20 ft lift capacity: Suitable for a wide range of applications.
- 1 ton load capacity: Capable of handling heavy loads efficiently.
